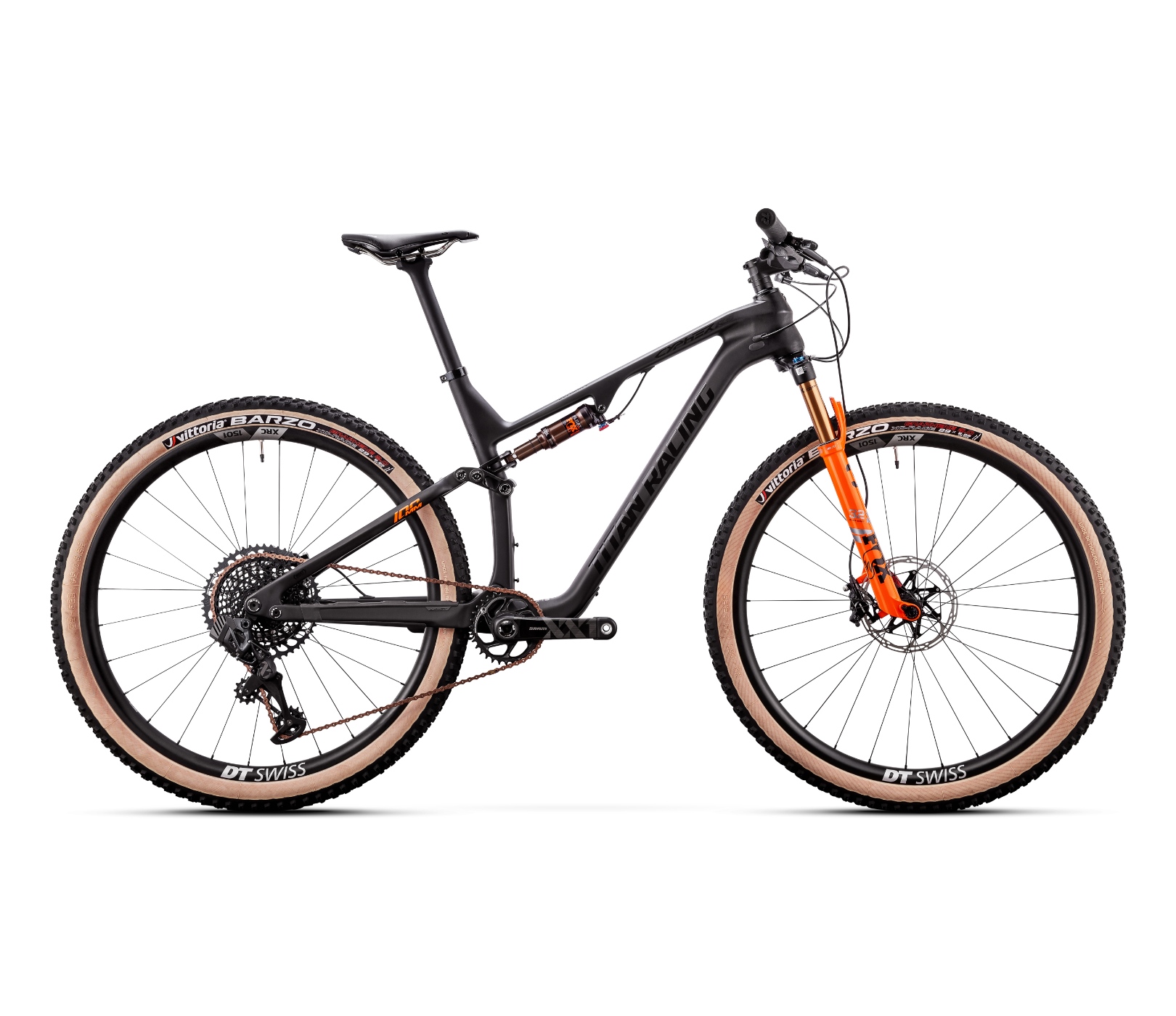

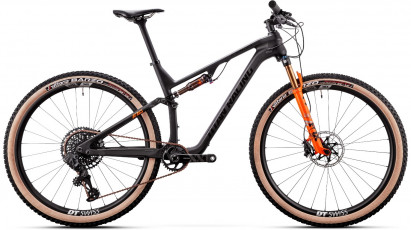

2023 Titan Cypher RS Ultimate Dual Suspension Carbon Mountain Bike Price & Deals

Brand	Frame Size (CM)	Rider Height (CM)
TITAN	XL	185-190
TITAN	L	176-184
TITAN	M	168-175
TITAN	S	159-167
TITAN	XS	149-158

Brand

Frame Size (CM)

Rider Height (CM)

TITAN

185-190

TITAN

176-184

TITAN

168-175

TITAN

159-167

TITAN

149-158

Seek the ultimate riding experience on the Titan Cypher RS Ultimate. Made for serious riders the RS Ultimate features high-end SRAM XX1 components for fast and accurate shifting. The SRAM Level Ultimate hydraulic disc brakes offers powerful and consistent stopping power meaning no downhill is too steep and no turn too sharp. Fight the trails and courses on the Titan Cypher RS Ultimate.

 Key Features:

- Cypher Carbon Frame Set
- Fox Factory 32 Float Fork
- Fox Factory Float Shock
- Sram XX1 Eagle Drivetrain
- Sram Level Ultimate Brakes
- Vittoria Barzo Tyres

 Frame:

Cypher Carbon Frame Set
FLIP CHIP / INTERNAL CABLE ROUTING / BOOST 148MM WITH THRU AXLE / BSA 73MM

 Fork:

Fox Factory 32 Float SC 100mm
2 Pos Remote with open Mode ADJ. 15QR Gloss Orange With black decals

 Rear Shock:

Fox Factory Float
2 POS REMOTE / SV EVOL / 190 x 37.5mm / 0.2SPACER / DCF / DRM / CMF

 Chainwheel:

XX1 Eagle 32t
SRAM XX1 DUB BSA 73mm / 32T / 12 SPEED / CARBON CRANKARM / ALLOY CHAINRING / 52mm CHAINLINE EAGLE BOOST 148 / NO GUARD / FC XX1 EAGLE B148 DUB 175 BLK 32

 Rear Derailleur:

RD-XX-1E-A1 XX1 Eagle AXS DER

 Right Shifter:

EC-AXS-SRAM-A1

 Chain:

CN-EAGL-XX1-A3 Copper

 Freewheel:

CS XG 1299 EAGLE 10-52T Copper

 BB Set:


SRAM DUB BSA MTB73

 Brake Lever:

Sram Level Ultimate

 Brakes:

Sram Level Ultimate with Rotor 180mm

 Grip:

TR Lockring Grip

 Handlebar:

TR Pro Carbon Flat / HBAR 760mm
ADK  AKHB05 31.6mm BAR BORE FLAT CARBON 760mm

 Handlebar Stem:

Tr Pro H/Bar Stem
DA-205 3D FORGED AL6061 / 31.8mm BAR BORE / 28.6mm CLAMP I.D / 6 DEGREE RISE / S = 60mm / M/L = 80mm / XL = 100mm

 Headset:

FSA No.42 / ACB (Bearing)

 Spacer:

10mm x 2 PCs

 Saddle:

Prologo Dimension NDR Tirox NTHR/BLACK Carbon INJ

 Seat Post:

TR Pro Carbon Seat Post 31.6mm
FB  SP056 CARBON 31.6MM 400M

 Seat Clamp:

Promax MX-70 Allen Key 34.9mm

 Rims:

DT Swiss Carbon XRC 1501 Spline
DT CARBON / HOOKLESS BEAD / UD FINNISH / TUBELESS READY / 622 x 30mm

 Front Hub:

DT Swiss Carbon XRC 1501 Spline
DT SPLINE 240s HUBS WITH 36T RACHET EXP SYSTEM / 28 HOLE CENTRE LOCK / 15 X 110mm THRU AXLE BOOST

 Rear Hub:

DT Swiss Carbon XRC 1501 Spline
DT SPLINE 240s HUBS WITH 36T RACHET EXP SYSTEM / 28 HOLE CENTRE LOCK / SRAM XD FREEBIDY / 12 X 148mm THRU AXLE BOOST

 Tyres:

Vittoria Barzo 29" x 2.25
XC-Race 120 TPI Nylon / 4C Graphene 2.0m Compound / TLR / Tan Sidewall
