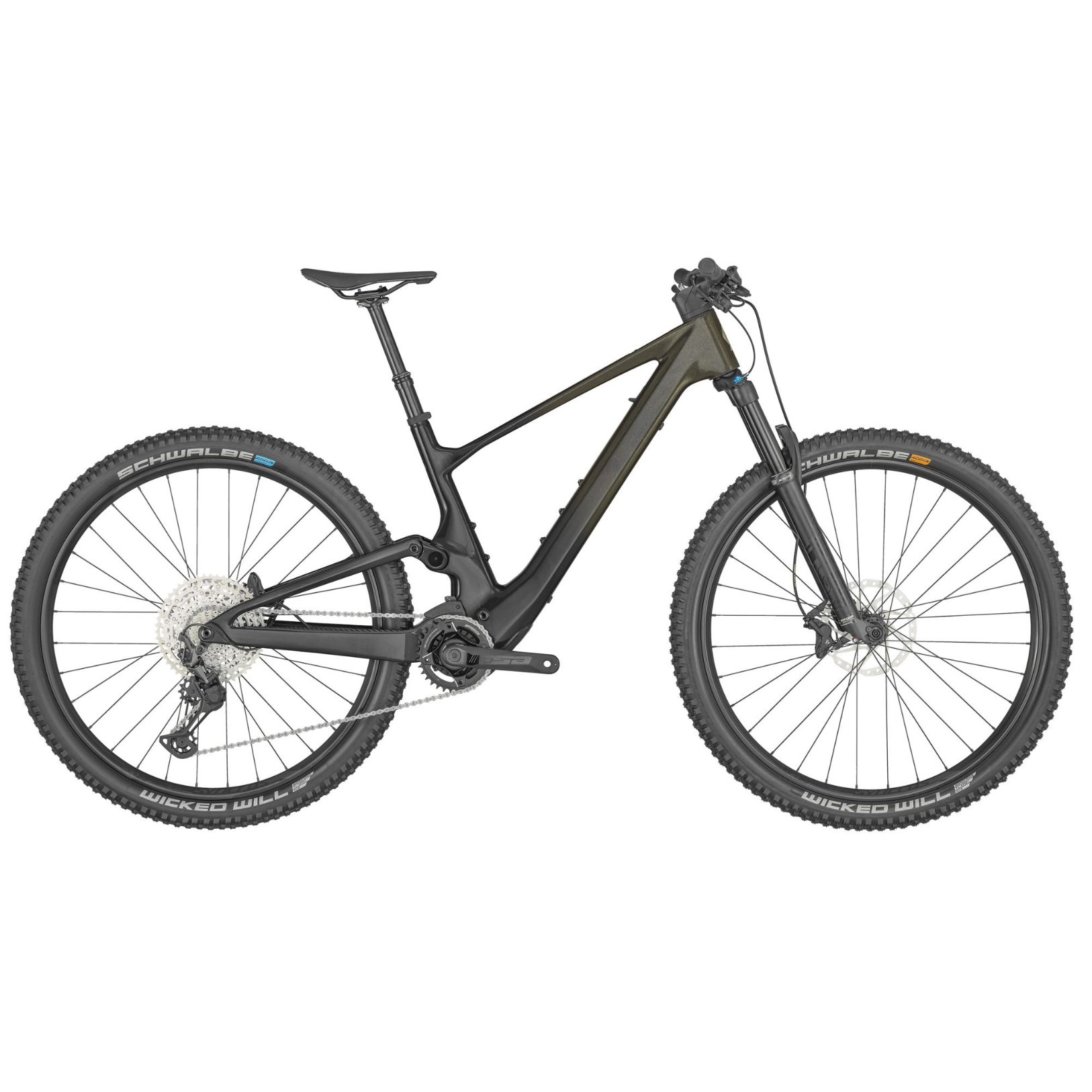

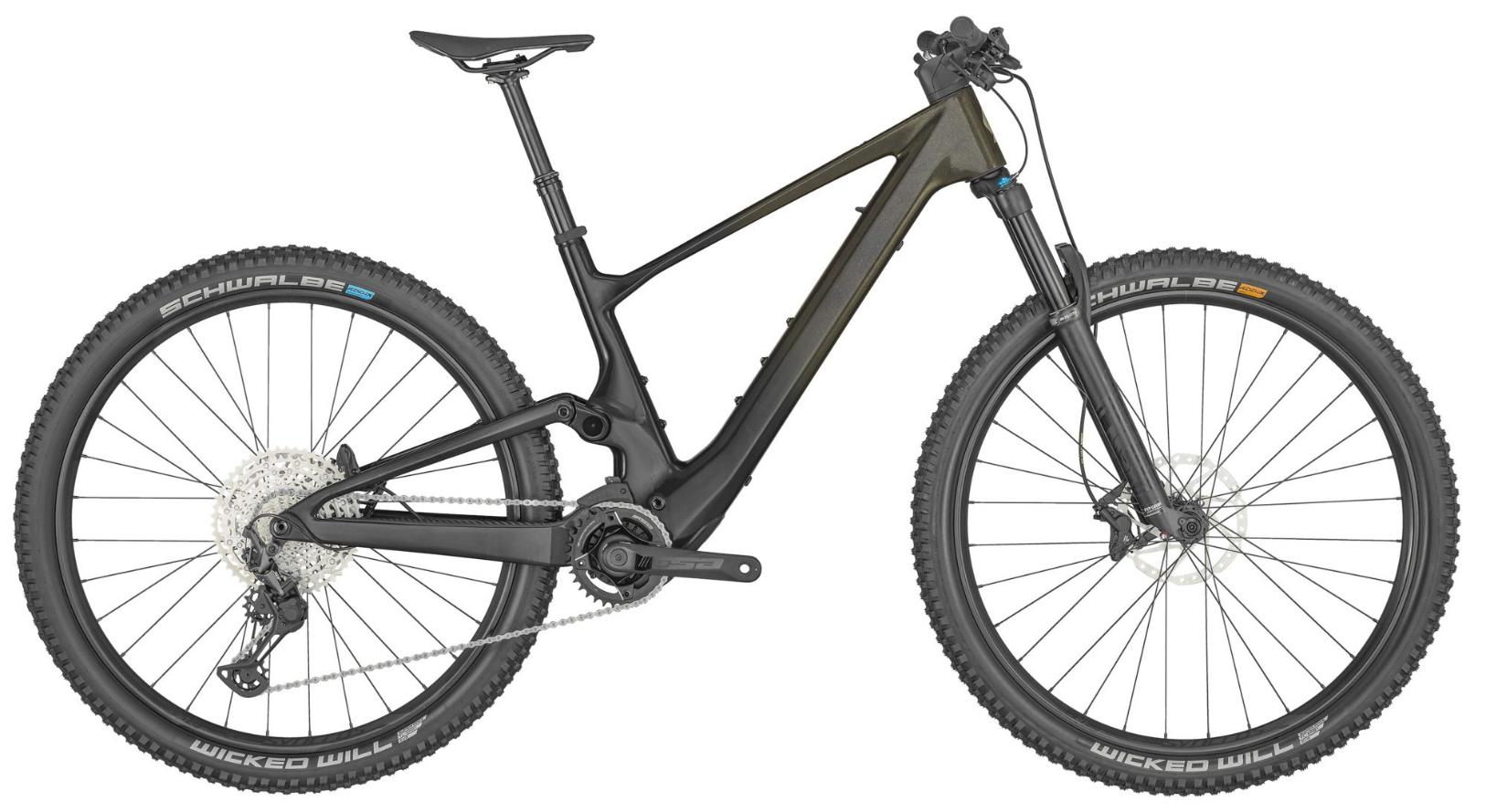

Shop 2023 Scott Lumen ERide 910 Carbon Dual Suspension E-Bike

2023 Scott Lumen ERide 910 features cutting edge MTB engineering and design for maximum trail riding. The HPR50 motor adds to the next level riding experience made to emulate natural peddling experience and to be silent as possible. The Harmonic gear system allowed for a smaller and lighter motor. The TwinLoc system enchances  controls for agile climbs and fast descents. Shred the trails with the 2023 Scott Lumen and ride at Nino's speeds.

Features

- Spark Carbon HMX Frame
- FOX 34 Float Rhythm 130mm Fork
- FOX Nude 5T EVOL, TwinLoc, 130mm Rearshock
- Shimano XT-Deore 12 Speed
- TQ HPR50 Mid Motor drive 50Nm max Torque     Motor

Frame

Lumen eRIDE Carbon HMX
Integrated Suspension Technology
Flex Pivot / Adjustable head angle
Syncros Cable Integration System
TQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline

Travel

Front: 130mm / Rear: 130mm

Fork

FOX 34 Float Rhythm Air Grip
3-Modes / Kabolt 15x110mm axle / tapered steerer
44mm offset / Reb. Adj. / Lockout / 130mm travel

Rear Shock

FOX NUDE 5T EVOL Trunnion
SCOTT custom w. travel / geo adj.
3 modes: Lockout-Traction Control-Descend
Custom large Air volume / DPS / Reb. Adj.
Travel 130-90-Lockout / T165X45mm

Remote System

SCOTT TwinLoc Suspension System
3 modes front and rear / integ. Grip clamp

Drive Unit

TQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh / US: 20mph

Battery

TQ Internal 360Wh

Display

TQ HPR
Bluetooth / ANT+ / Dedicated Smartphone app

Charger

TQ 100-240V-4A

Rear Derailleur

Shimano XT RD-M8100 SGS
Shadow Plus / 12 Speed

Shifters

Shimano Deore SL-M6100-IR / Rapidfire Plus
Ispec EV clamp

Crankset

FSA Alloy crankset / 175mm / 34T

Chain Guide

e*thirteen / e*spec Slider

Chainring

Scott custom spider / FSA 12Speed 34T chainring

Chain

Shimano CN-M6100

Cassette

Shimano CS-M6100 / 10-51 T

Brakes

Shimano Deore M6120 4 Piston Disc

Rotor

Front: SM-RT64 CL 180mm / Rear: RT-EM600 CL 180mm

Handlebar

Syncros Fraser 2.0 DC Alloy 6061 D.B.
mini Rise / back sweep 8° / 760mm
Syncros Performance XC lock-on grips

H'Stem

Syncros DC 2.0
Syncros Cable Integration System
0° rise / 6061 Alloy / 31.8mm / 1 1/8"

Seatpost

Syncros Duncan Dropper Post 2.0
31.6mm / S & M size 125mm / L size 150mm / XL size 170mm

Seat

Syncros Tofino 1.5 Regular, Titanium rails

Headset

Syncros - Acros Angle adjust & Cable Routing HS System
+-0.6° head angle adjustment
ZS56/28.6  ZS56/40 MTB

HUB's

Front: Formula CL-811 / 15x110mm
RearFormula CL-148M / 12x148mm / Micro Spline


Spokes

Stainless Black 15G / 1.8mm
RIMSSyncros X-30SE / 32H / 30mm


Tyres:

Schwalbe Wicked Will 29x2.4" EVO
Super Race / TLE / 67EPI / Addix Speed Soft
