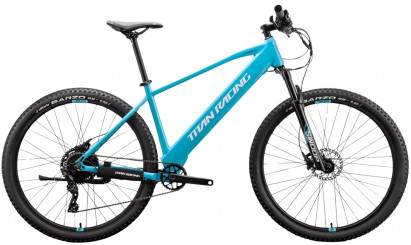

2024 Titan Charge E-One Hardtail Aluminium Mountain eBike

Brand	Frame Size (CM)	Rider Height (CM)
TITAN	XS	149-158
TITAN	S	159-167
TITAN	M	168-175
TITAN	L	176-184
TITAN	XL	185-190

Brand

Frame Size (CM)

Rider Height (CM)

TITAN

149-158

TITAN

159-167

TITAN

168-175

TITAN

176-184

TITAN

185-190

Featuring a sleek and contemporary design the all-new Titan Charge E-One provides a comfortable and efficient way to hit the streets on your commute to work, school, or the stores. Thank to its improved Xionda motor the Titan Charge E-One offers a wonderful pedal assist for the longer commutes.

 Key Features:

- E-MTB Alloy Frame
- Swoop 368 Fork
- Xionda Motor
- LG Battery Cell
- XOD Brakes
- Vittoria Barzo Tyres

 Frame:

Charge 29" E-MTB Alloy Frame
Modern Geometry / Machine Formed Tubing / Internal Battery / Internal Cable Routing / QR 9mm Rear Axle / Disc Only

 Fork:

Swoop 368 100mm
29" / 100m/ Coil Spring / Lockout / 9mm QR

 Chainwheel:

Prowheel 1 x 8 32T
Prowheel / 32T/ 8 Speed / Alloy Crank/ Steel Chainring/ No Guard

 Rear Derailleur:

Microshift Acolyte RD-M5185M

 Right Shifter:

Microshift TS39-28 Trigger

 Chain:

KMC Z7

 Freewheel:

Microshift CS-H083 12-46T

 BB Set:

Neco B910 Cartridge Type

 Speed:

8 Speed

 Battery:

36V,10.40AH LG BATTERY CELL, 2600MAH

 Controller:

36V/250W

 Display:

S866, LCD, 36V

 Sensor:

Double Hall, KT-V12, 12 Magnet

 Charger:

 MDA257,36/48V/2A, SOUTH AFRICA STANDARD, 3 LEGS TYPE

 Motor:

Xionda 36H Alloy 350W 32km/h

 Brake Lever:

XOD XD-E500

 Brakes:

XOD XD-E500 Piston With 180mm

 Grip:

TR Slide Lock Grip

 Handlebar:

TR Comp Flat H/Bar 760mm
TR AL-312BT 31.8mm FOV 760mm

 Handlebar Stem:

TR Comp H/Bar Stem
TR TDS-D479-8FOV 31.8mm Alloy

 Headset:

Neco H373+ C2861 Semi Type Alloy

 Spacer:

2 x 100mm

 Saddle:

YBT-K245F041

 Seat Post:

TR Comp 31.6mm
TR SP-C261 Rigid Alloy 31.6mm 400mm

 Seat Clamp:

31.8 QR Black

 Kickstand:

TR QK-RA08 Side Kick Stand for E-bike

 Rims:

29" Disc 36H
TR Lye-026B Alloy Double Wall / 29*1.5*13G / HH:18 W:27/ A/V

 Front Hub:

Alloy AR
KT-K68F Disc QR Type M9*13G*36H*100*108

 Rear Hub:

Xionda
Xionda 36H Alloy

 Spokes:

Steel ED Black

 Tubes:

29" A/V Butyl

Tyres:

Vittoria Barzo 29" x 2.25"
XC / 1C Compound / 26TPI Nylond Rigid Black Wall
