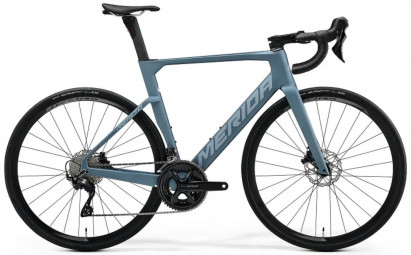

2024 Merida Reacto 4000 Carbon Road Bike

Brand	Frame Size (CM)	Rider Height (CM)
MERIDA	2XL	191-200
MERIDA	XL	181-190
MERIDA	L	176-180
MERIDA	M	171-175
MERIDA	S	165-170
MERIDA	XS	155-165

Brand

Frame Size (CM)

Rider Height (CM)

MERIDA

2XL

191-200

MERIDA

181-190

MERIDA

176-180

MERIDA

171-175

MERIDA

165-170

MERIDA

155-165

The 2024 Merida Reacto Carbon Road Bike stands out with its lightweight CF3 carbon aero frame, crafted for speed and efficiency. The Reacto CF3 carbon fork complements this design, ensuring excellent handling and stability at high speeds.
Featuring a Shimano 105 disc drivetrain, shifting is precise and responsive, allowing riders to tackle diverse routes with ease. The Shimano 105 hydraulic brakes provide consistent stopping power, enhancing control in various conditions.
Merida's Expert CW rims add to the bike's performance, offering durability and a smooth ride. Paired with Continental Ultra Sport III 28c tyres, it balances speed and comfort perfectly, making it ideal for both competitive races and long-distance adventures.
With its aerodynamic build and quality components, the 2024 Merida Reacto is a compelling choice for cyclists seeking to enhance their performance on the road.

Key Features:

- Lightweight CF3 Carbon Aero Frame
- Reacto CF3 Carbon Fork
- Shimano 105 Disc Drivetrain
- Shimano 105 Hydraulic Brakes
- Merida Expert CW Rims
- Continental Ulra Sport III 28c Tyres

 Frame:

Reacto CF3 IV
material: carbon
700x30C max. wheelsize
100x12/ 142x12mm axle standard
BB86,5 bottom bracket standard

 Fork:

Reacto CF3 IV Disc
material: carbon
700x30C max. wheelsize

 Rear Derailleur:

Shimano 105 GS

 Front Derailleur:

Shimano 105

 Rotors:

Shimano RT54
160mm

 Shifters:

Shimano 105 disc

 Brake Lever:

Shimano 105

 Brakes:

Shimano 105 Hydraulic Disc

 Crank:

Shimano 105
52-36 Teeth

 Front Hub:

Shimano HB-TC500
100x12mm width front hub
28 spoke holes
Centerlock

 Rear Hub:

Shimano HB-TC500-HL
12-142mm width rear hub
28 spoke holes
Centerlock

 Spokes:

 Double Butted Black stainless

 Handlebar Stem:

Merida Expert SL 2PII
material: aluminium
-9? stem angle
90 mm-XXS/XS, 100 mm-S, 110 mm-M/L, 120 mm-XL

 Handlebar:

Merida Expert CW
material: aluminium
380mm (XXS-XS)
400mm (M-L-XL)

 Headset:

Merida Team SL
VP-MRBHB (OP203 Neck)

 Seat Post:

Merida Team CW
Aero shape
15mm setback
Carbon

 Saddle:

Merida Expert SL
6% recycled and 23% nature material
V-mount

 Rim:

Merida Expert CW
19mm inner width
30mm height
material: aluminium
Tubeless ready (tubeless tape and valves not included)

 Freewheel:

Shimano 105 R7101
11-34 Teeth
12 Speed

 Tyres:

Continental Ultra Sport III
700 x 28c
Fold
