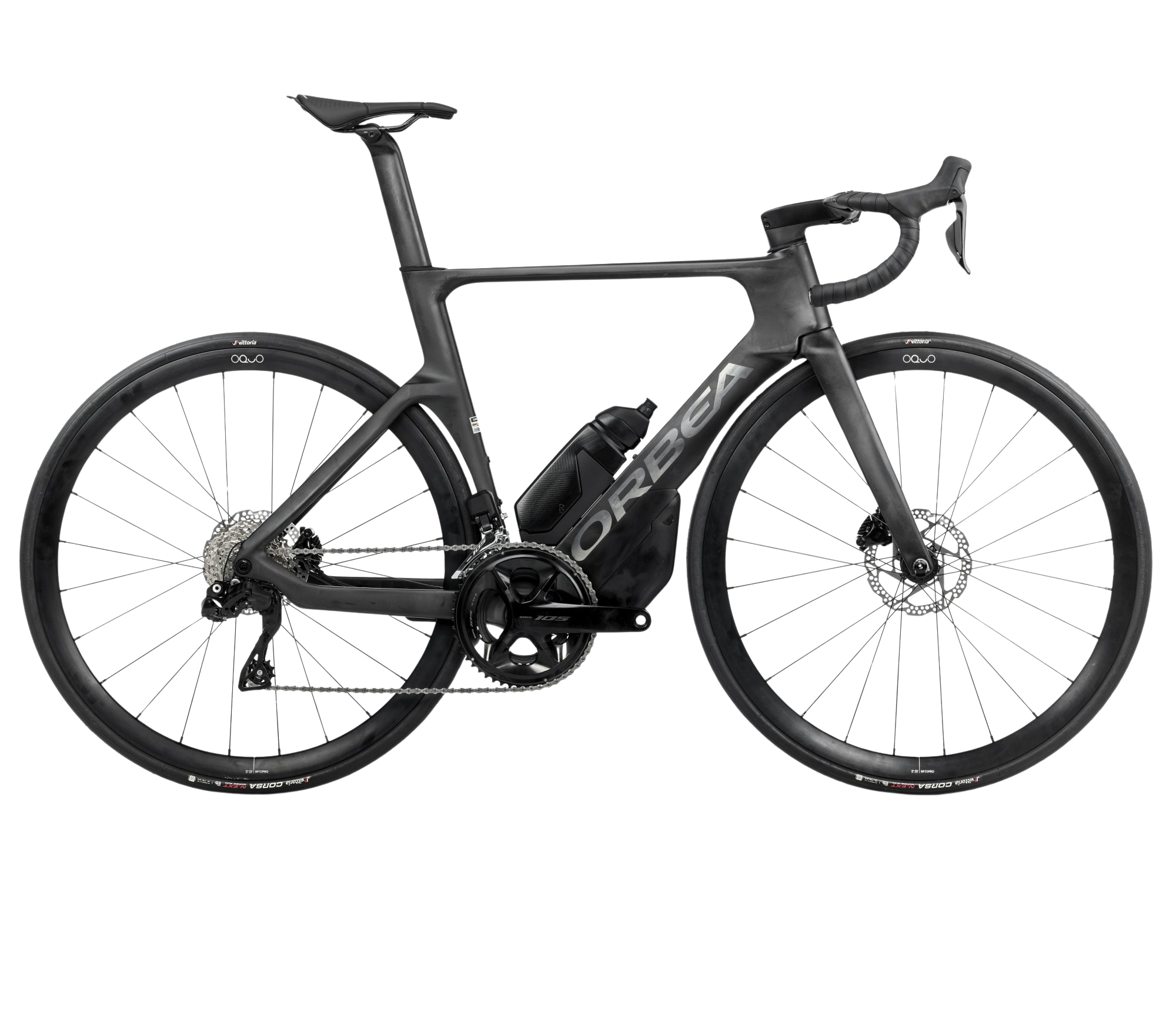

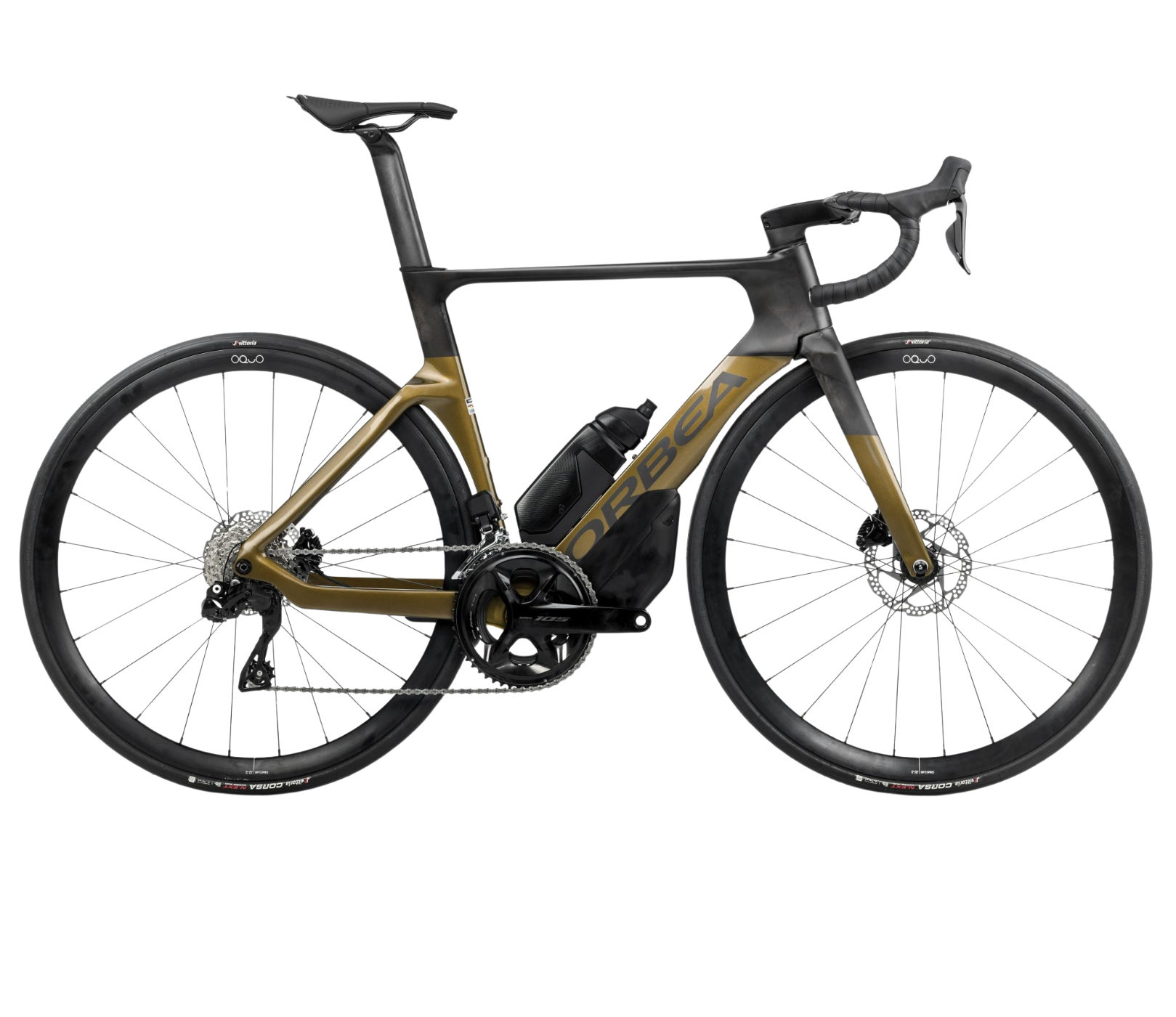

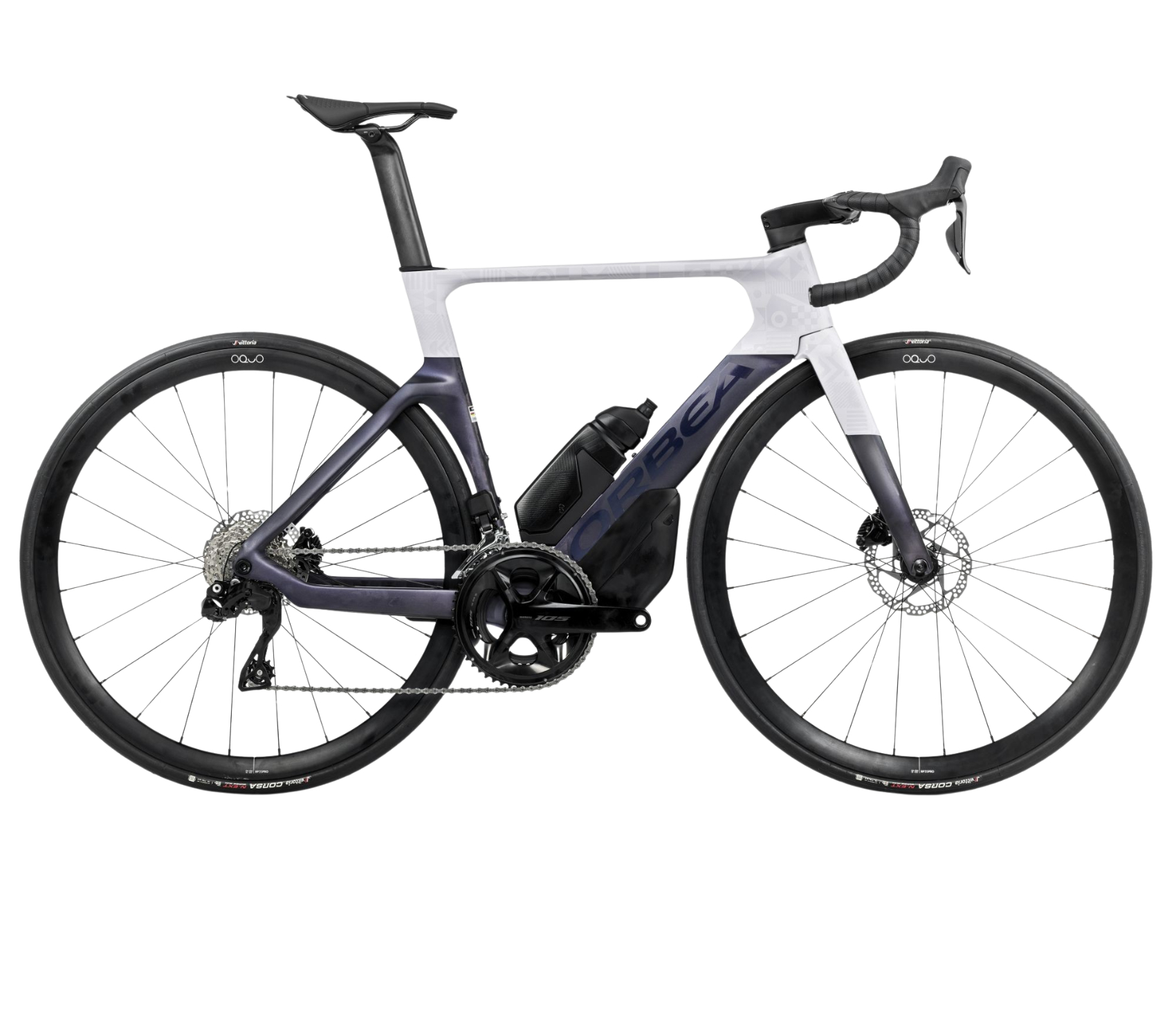

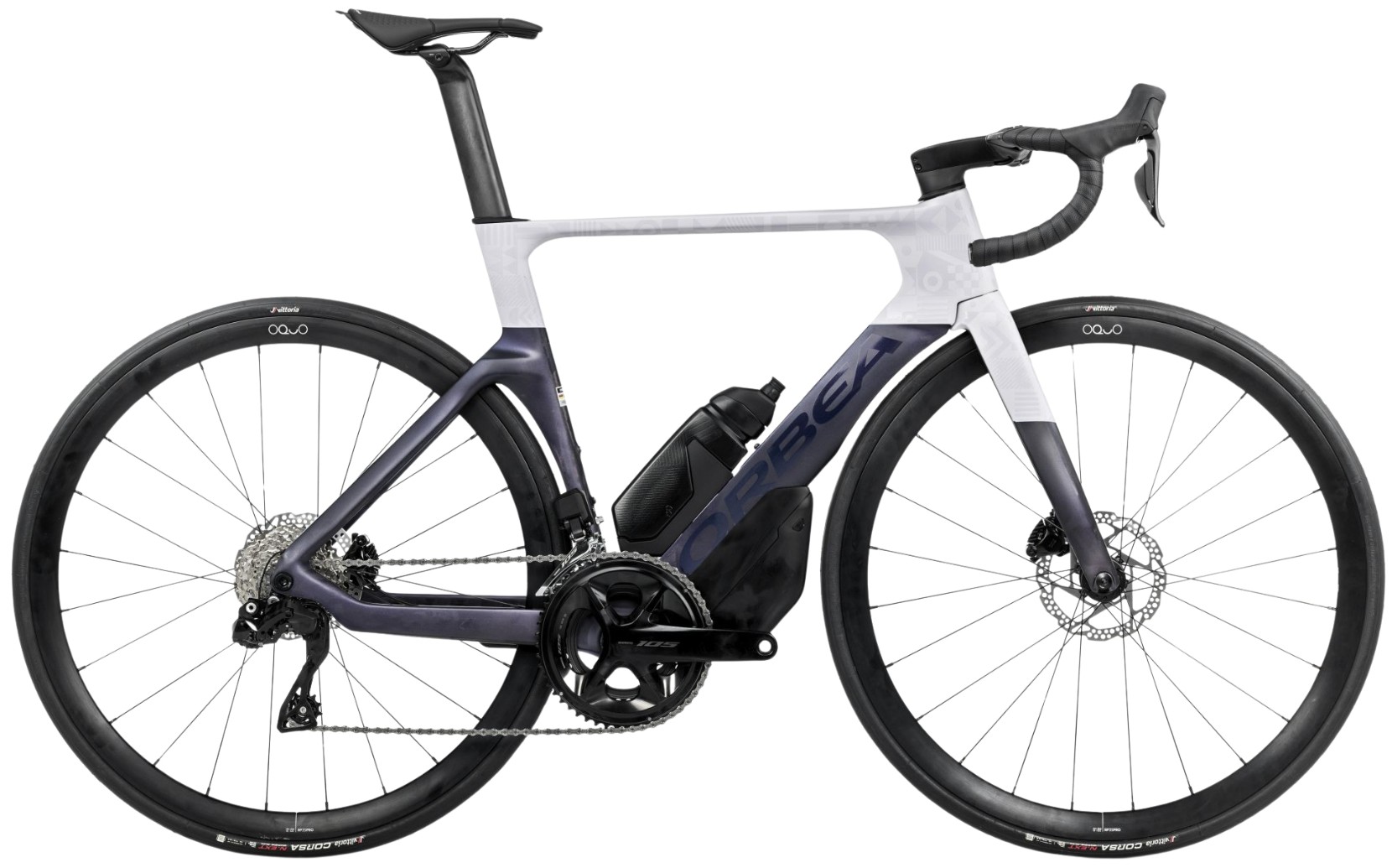

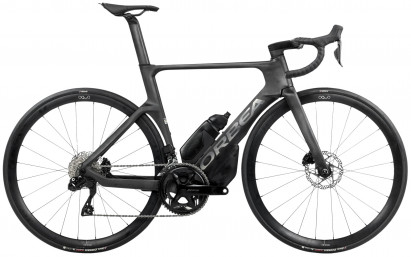

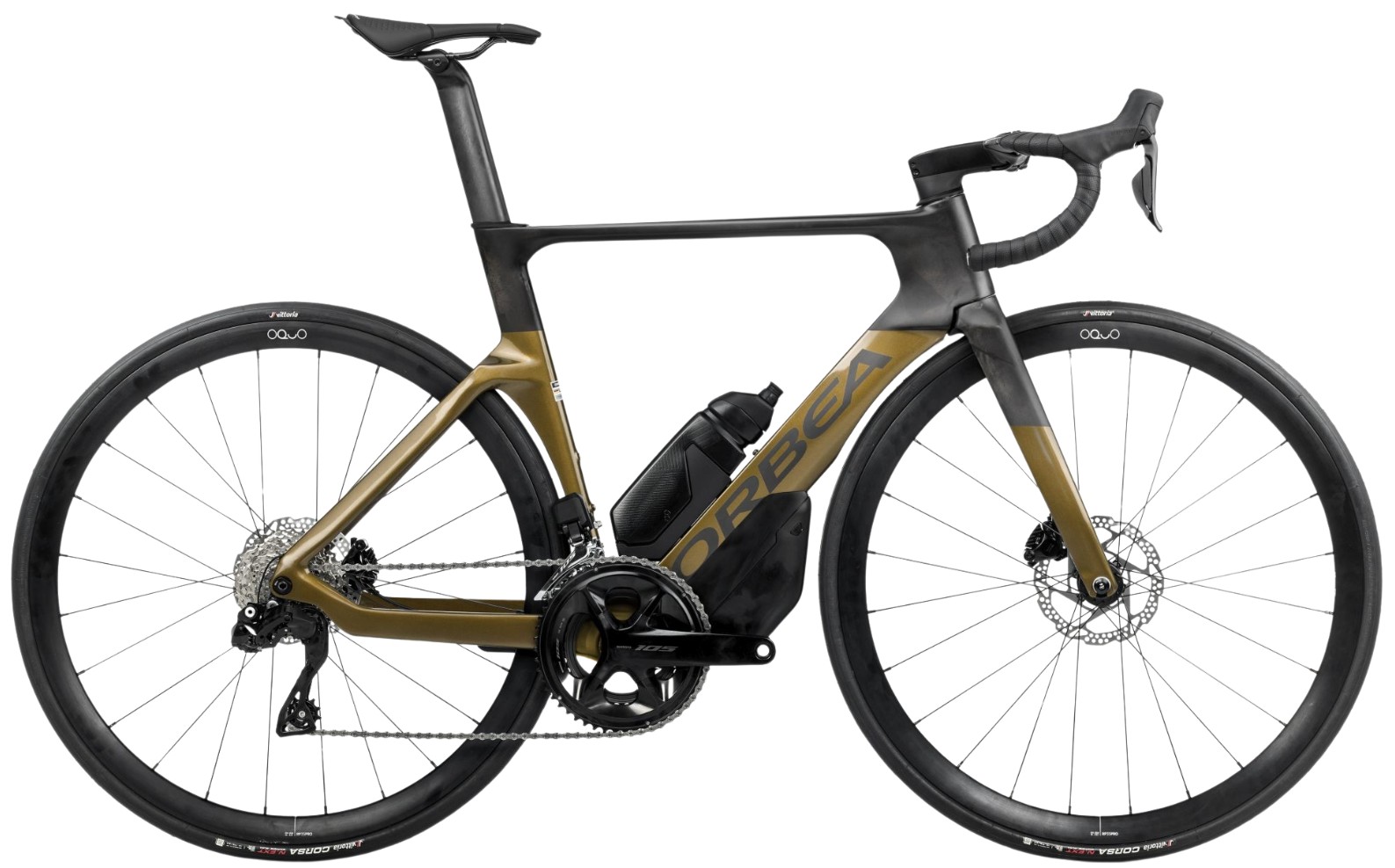

Orbea Orca Aero M30ILTD Carbon Road Bike 2025

The Orbea Orca Aero M30ILTD Carbon Road Bike is built for cyclists who crave speed and efficiency. Every detail is shaped for performance, cutting through the air with minimal resistance. Competitive riders will appreciate the uncompromising power transfer, ensuring that every watt counts when pushing for the podium.

Aerodynamics meet precision handling, allowing confident control even at high speeds. The frame geometry promotes a natural, aggressive riding position, making it ideal for those who thrive in fast-paced races or intense training sessions. A stiff lower spine channels power directly to the rear wheel, giving an immediate response to every pedal stroke.

Comfort isnt sacrificed for speed. The OC Cockpit provides a seamless blend of control and ergonomics, ensuring a confident grip and smooth transitions between positions. Whether sprinting, climbing, or holding speed on the flats, the Orca Aero delivers efficiency and performance without hesitation.

Key Features:

- Orbea Orca Aero OMX Carbon Frame
- Orbea Orca Aero OMX ICR Carbon Fork
- Shimano 105 Di2 Groupset Components
- Oquo Road Performance RP35PRO Rims
- Vittoria Corsa N.Ext G2.0 Foldable 700x28c Tyres

Benefits:

- Speed and Efficiency: Designed to minimize air resistance, enhancing speed in every ride.
- Uncompromising Power Transfer: Maximizes energy from each pedal stroke for optimal performance.
- Precision Handling: Offers confident control, especially at high speeds, for better stability.
- Aggressive Frame Geometry: Promotes a natural riding position suited for competitive cyclists.
- Comfort with Performance: Balances comfort and control, ensuring smooth transitions during intense riding.

Frame

Orbea Orca Aero Carbon OMX disc, monocoque construction, HS 1,5", BB 386, powermeter compatible, Thru Axle 12mm x 142mm rear, thread M12x2 P1, Speed release compatible, internal cable routing, EC/DC compatible.

Fork

Orbea Orca Aero OMX ICR, full carbon, 1-1/8" - 1,5" tapered head tube compatible, Thru axle 12x100mm, thread M12x2 P1, Speed release compatible dropout.

Steerer tube

FSA 1-1/2" Integrated Aluminium Cup

Crankset

Shimano 105 R7100 36x52t

Shifters

Shimano Di2 R7170

Cassette

Shimano 105 R7100 11-34t 12-Speed

Rear derailleur

Shimano 105 Di2 R7150

Front derailleur

Shimano 105 Di2 R7150

Chain

Shimano M6100

Cockpit

Handlebar

OC Road Aero RA11 Carbon, Reach 80, Drop 125

Stem

OC Road Performance RP10, -8º

Brakes

Shimano R7170 Hydraulic Disc

Rotors

160mm Front / 160mm Rear

Brakes Configuration

N/A

Wheels

Oquo Road Performance RP35PRO

Tyres

Vittoria Corsa N.Ext G2.0 Foldable 700x28c

Front Wheel Axle

Orbea Thru Axle 12x100mm M12x2 P1 Lite

Rear Wheel Axle

Orbea Thru Axle 12x142mm M12x2 P1 Lite

Seatpost

OC Road Aero RA10 Carbon Ultralight, SB0/25, w/Micro tilt adjustment

Saddle

Prologo Scratch-M5 Pas T2.0 size 140mm

Handlebar Tape

Orbea Anti-Slippery/Shock Proof

Hydration

OC Aero Bottle RA10 (550ml) + Carbon Cage Kit RA10

Storage

OC Aero Toolbox TB01PP
