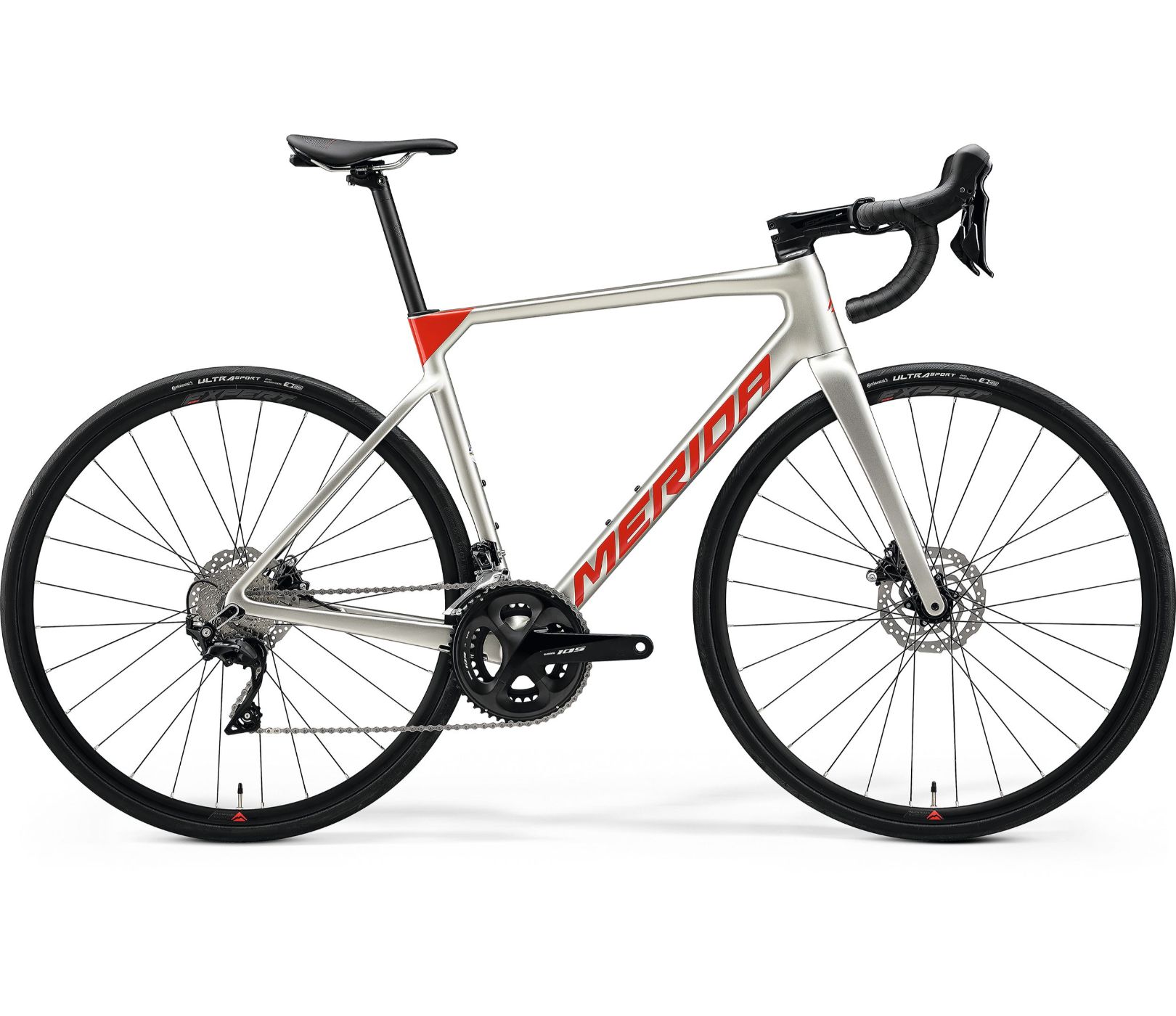

Merida Scultura 4000 Disc Carbon Road Bike

Brand	Frame Size (CM)	Rider Height (CM)
MERIDA	2XL	191-200
MERIDA	XL	181-190
MERIDA	L	176-180
MERIDA	M	171-175
MERIDA	S	165-170
MERIDA	XS	155-165

Brand

Frame Size (CM)

Rider Height (CM)

MERIDA

2XL

191-200

MERIDA

181-190

MERIDA

176-180

MERIDA

171-175

MERIDA

165-170

MERIDA

155-165

The Merida Scultura 4000 is a racing machine for high-performance riders. With an advanced carbon frame at its core the Scultura 4000 strikes a  balance between lightweight construction and structural integrity, ensuring a responsive ride. Equipped with Shimano 105 groupset components the Scultura 4000 fast and reactive gear transitions no matter the riding conditions


Key Features:

- SCULTURA CF3 V Carbon Frame
- SCULTURA CF3 Disc Carbon Fork
- Shimano 105 Groupset Components
- MERIDA EXPERT SL Aluminium Rims
- Continental Ultra Sport III 700x28C Tyres

Frame:

SCULTURA CF3 V
material: carbon
700x30C max. wheelsize
100x12/ 142x12mm axle standard
Pressfit 86,5

Fork:

SCULTURA CF3 Disc
material: carbon
700x30C max. wheelsize

Brakes:

Shimano 105
Hydraulic Disc

Rotors:

Shimano RT10
160mm

Brake Lever:

 Shimano 105

Handlebar:

MERIDA EXPERT SL
material: aluminium

Handlebar Stem:

FSA SMR ACR
material: aluminium
-6° stem angle

Grip:

MERIDA ROAD Expert

Front Derailleur:

Shimano 105

Rear Derailleur:

Shimano 105
GS

Seatpost:

MERIDA EXPERT CC
27.2mm diameter
15mm setback
Carbon

Seat Clamp:

MERIDA EXPERT

Saddle:

MERIDA EXPERT SL
V-mount
incl. MERIDA minitool

Chain:

CHAIN KMC X11

Crank:

Shimano 105
50-34 teeth

Freewheel:

 Shimano CS-R7000
11-30 teeth
11 speed

Bottom Bracket:

SM-BB71-41B, Pressfit 86.5

Hubs:

 VP CLK170F / VP CLK270R
100x12mm width front hub
28 spoke holes
Centerlock
142x12mm width rear hub
28 spoke holes
Centerlock

Rims:

MERIDA EXPERT SL
17mm inner width
22mm height
material: aluminium

Tyres:

Continental Ultra Sport III
700x28C
fold

Axles

MERIDA EXPERT SL
including removable lever
6/4mm allen key

Spokes:

Double Butted Black stainless
