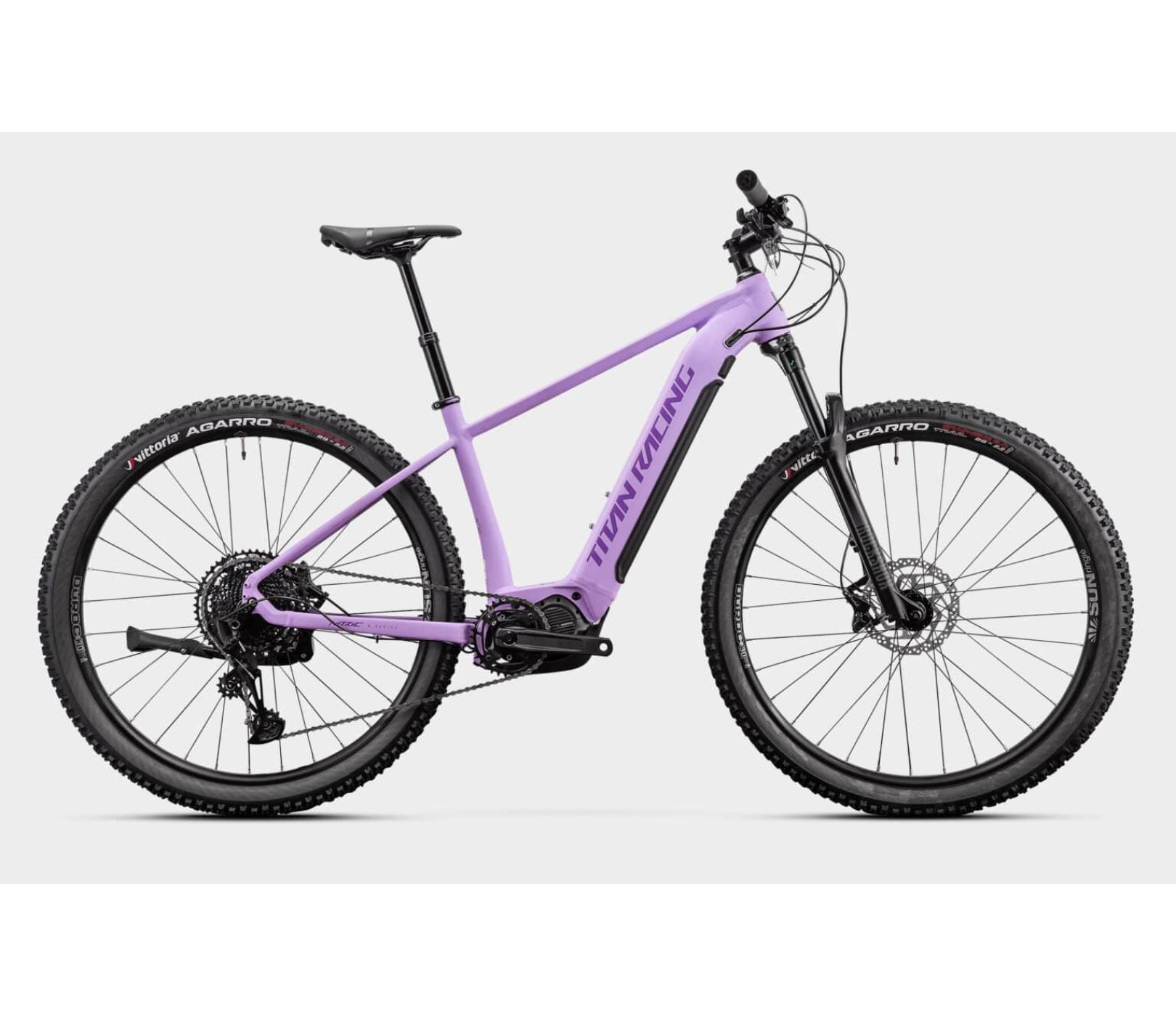

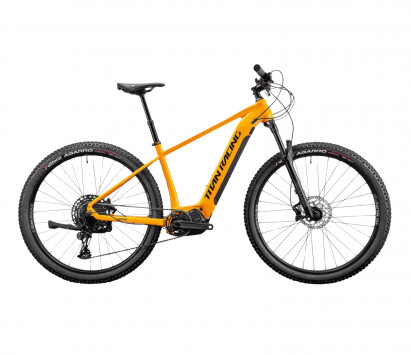

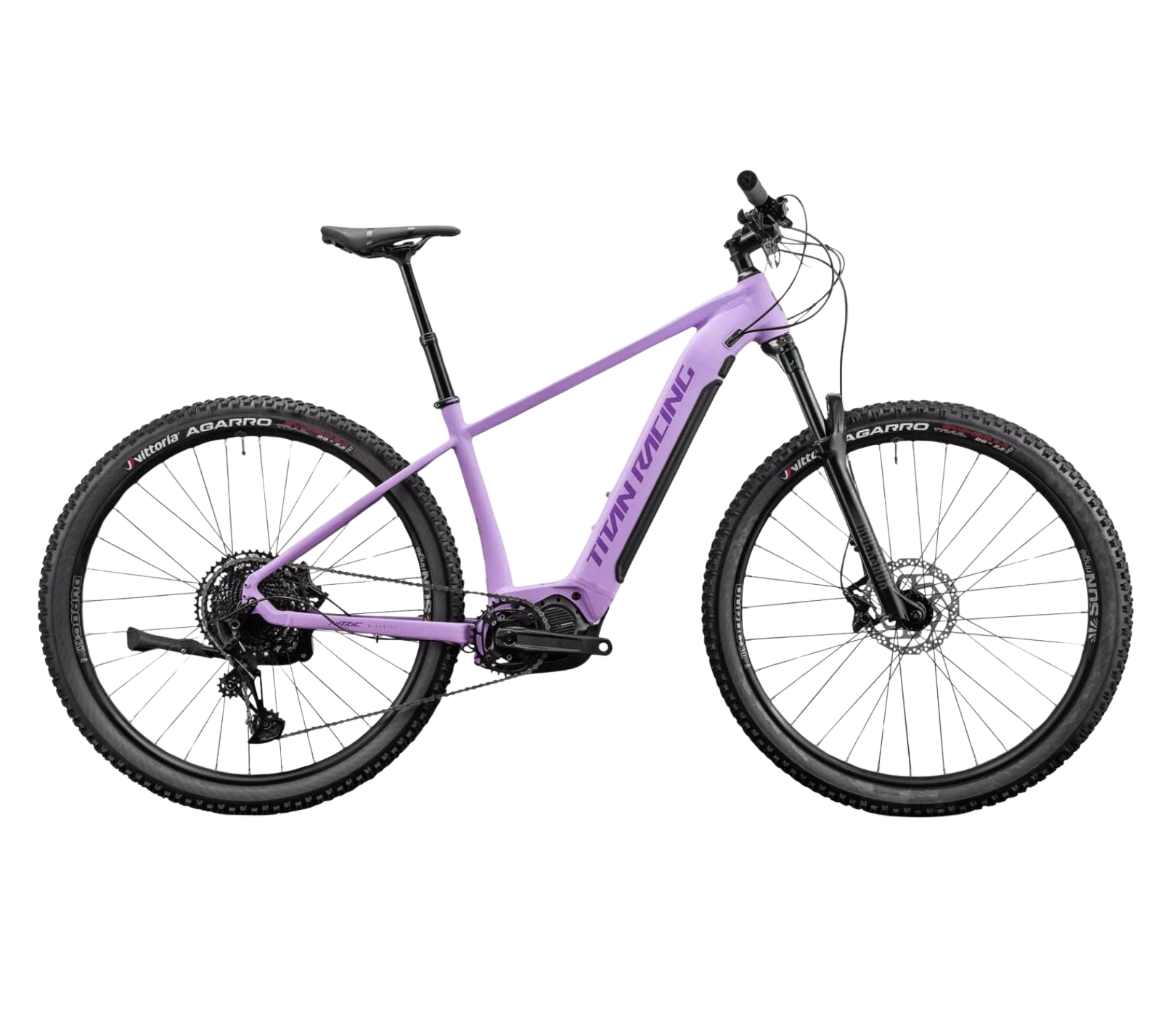

Titan Nitric Dash Aluminium Hardtail Mountain e-Bike

Brand	Frame Size (CM)	Rider Height (CM)
TITAN	XS	149-158
TITAN	S	159-167
TITAN	M	168-175
TITAN	L	176-184
TITAN	XL	185-190

Brand

Frame Size (CM)

Rider Height (CM)

TITAN

149-158

TITAN

159-167

TITAN

168-175

TITAN

176-184

TITAN

185-190

The perfect blend of power and performance the Titan Nitric Dash E-Bike will have you racing up and dashing down hills. Powered by a Shimano Steps 250W motor and a long-lasting Dafron 504W battery, the Titan Nitric Dash provides seamless electric assistance when you need it most. Ride in comfort with the sleek ergonomic design and control panel for an adjustable ride.

Key Features:

- Nitric E-MTB Alloy Frame
- RockShox Judy 120mm Silver Fork
- Shimano Steps DU-E7000 250W Motor
- Dafron 504W Battery
- SRAM Groupset Components
- SunRingle Duroc 32 Hole Rims
- Vittoria Agarro 29x2.6 Tyres

Frame:

NITRIC E-MTB ALLOY FRAME FOR SHIMANO STEPS
MODERN GEOMETRY / HYDROFORMED TUBING / INTERGARTED BATTERY / INTERNAL CABLE ROUTING / BOOST 148mm

Fork:

ROCKSHOX JUDY SILVER AIR 120mm
29? / 120mm / SOLO AIR SPRING / 30mm STANCHIONS / TURNKEY DAMPER / 51mm OFFSET / DIFFUSION BLACK / 15 x 110mm THRU AXLE BOOST / FS JUDYS TK R 29 SB 100 DFB FB 51 A3

Chainwheel:

SRAM Eagle 34T 104BCD
SAMOX / 32T / 12 SPEED / ALLOY CRANK / 52mm CHAINLINE BOOST 148 / NO GUARD / S  170mm CRANKARM / M+L+XL  175mm CRANKARM

Shifters:
SRAM SX EAGLE TRIGGER

Chain:

CN SX EAGLE

Cassette:

CS PG1210 EAGLE 11-50T

Crank:

Shimano FC-E8000  All sizes 165mm

Battery:

DARFON 504W

Controller:

SHIMANO STEPS SC-E7000

Display:

SHIMANO STEPS SC-E7000

Sensor:

SHIMANO STEPS SM-DUE11

Charger:

DARFON

Motor:

SHIMANO STEPS DU-E7000
SATELITE ON/OFF SWITCH
SHIMANO STEPS EW-SW100
SATELITE CHARGING PORT
DARFON

Brake Lever:

SRAM

Brakes:

SRAM LEVEL 180MM

Rims:

SUNRINGLE DUROC 30MM TL 32 HOLE

Hub Front:

TR PRO DISC
TR DC-511 / 14Gx32H-M15x110 / THRU AXLE BOOST

Hub Rear:

TR PRO DISC
TR DC-3248 / 14Gx32H-M12x148 / THRU AXLE BOOST

Spokes:

Stainless BLACK

TUBE
29? F/V BUTYL

Tyres:

VITTORIA AGARRO 29" X 2.6
TRAIL 120TPI NYLON / 4C GRAPHENE 2.0 COMPOUND / TNT / ANTHRACITE SIDEWALL

Grip:

TR LOCKRING GRIP

Handlebar:

TR PRO ALLOY RISER BAR 780MM
PROMAX HB-3188DB R15 780MM

Stem:

TR PRO ALLOY STEM
DA-205 3D FORGED AL6061 / 31.8mm BAR BORE / 28.6mm CLAMP I.D / 6 DEGREE RISE / S+M+L = 60mm / XL = 80mm

Headset:

FSA NO.42/ACB (BEARING)

Spacer:

10mm X 2 PCS

Saddle:

PROLOGO PROXIM W350

Seatpost:

MANIC 125MM WITH PLASTIC REMOTE
S = 100MM / M+L+XL = 125MM / XC/TRAIL ALLOY CONSTRUCTION / INFINITE ADJUST / INTERNAL CABLE ROUTING / PLASTIC MANIC REMOTE 31.9

Seat Clamp:

 MX-95RT ALLEN KEY TYPE

Kickstand:

29? ALLOY E-BIKE
