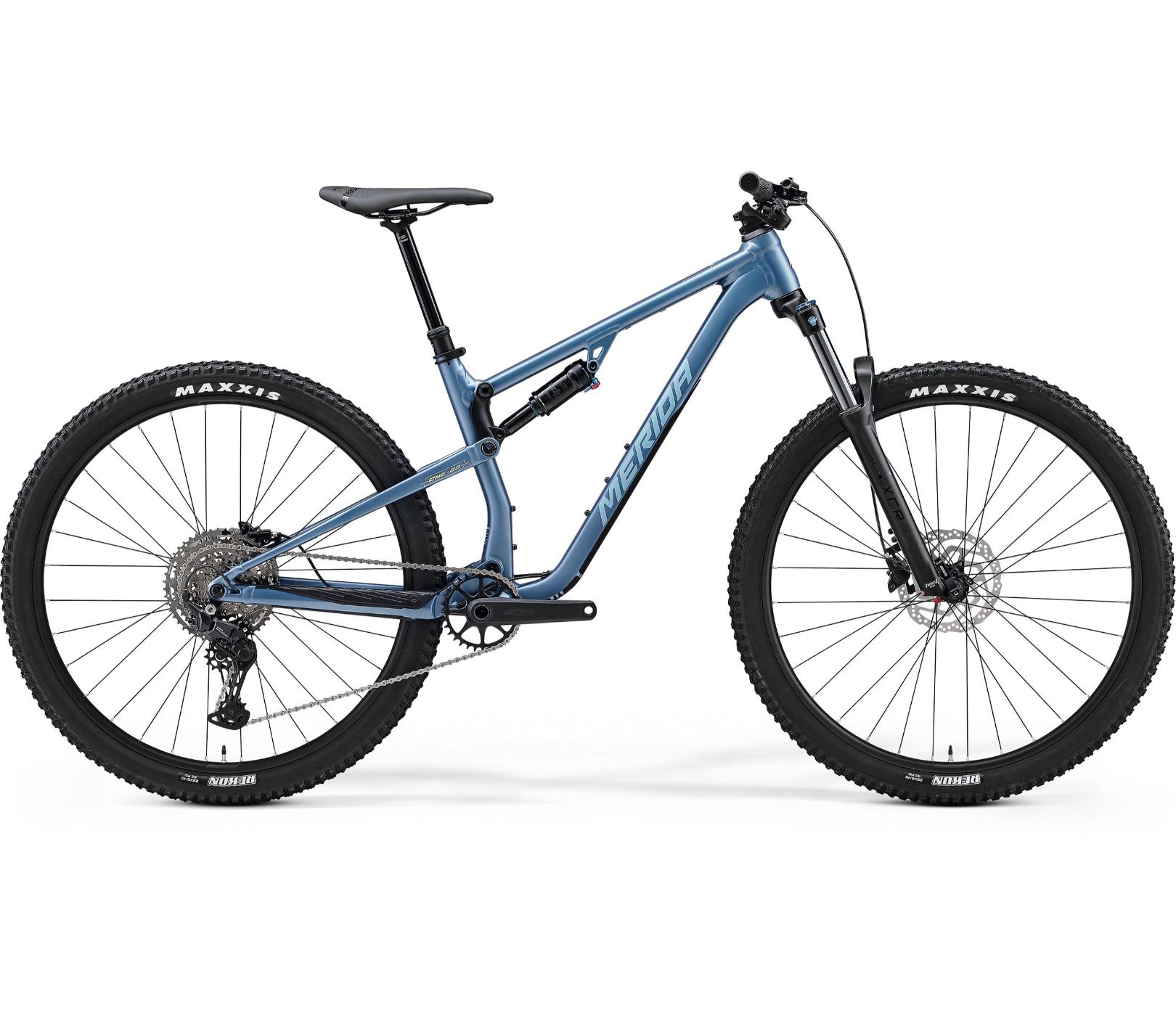

Merida One Twenty 300 Aluminium Dual Suspension Mountain Bike

Brand	Frame Size (CM)	Rider Height (CM)
MERIDA	XS	149-158
MERIDA	S	159-167
MERIDA	M	168-175
MERIDA	L	176-184
MERIDA	XL	185-190

Brand

Frame Size (CM)

Rider Height (CM)

MERIDA

149-158

MERIDA

159-167

MERIDA

168-175

MERIDA

176-184

MERIDA

185-190

Don't break the bank with the Merida One-Twenty 300 thats ready to smash the trails with its 130mm front travel and geared up Shimano CUES groupset components . The One-Twenty 300's progressive LITE aluminium frame and proven P-FLEX flexstay suspension design lowers maintenance and enhances performance. Hit the trails fast and hard with the Merida One Twenty 300 and never relent.

Key Features

- One Twenty Lite V Frame
- SR Suntour XCR34 2CR 130mm Air Fork
- Shimano CUES Groupset Components
- RIM MERIDA COMP CC II Alloy TR Rims
- Maxxis Recon 29x2.4 Wire Bead

Frame:

ONE-TWENTY LITE V
130 mm suspension travel
material: aluminium
29x2.5" max. wheelsize
148x12 mm axle standard
BSA bottom bracket standard

Fork:

Suntour XCR34 2CR
Air
130 mm suspension travel
Tapered
lockout
44 mm fork offset
29x2.4" max. wheelsize

Shock:

SR Suntour Edge Plus 2CR

Brakes:

 Shimano MT200
2 piston

Rotors:

Shimano RT10
180 mm

Headset:

Acros ICR MERIDA EXTERNAL neck
Upper and lower IPS sealing

Handlebar:

MERIDA COMP TR
material: aluminium
780 mm width
20 mm rise

Stem:

MERIDA EXPERT TR
material: aluminium
35 mm diameter
0° stem angle
40 mm

Rear Derailleur:

Shimano CUES U6000
GS

Shifters:

Shimano SL-MT500-L / Shimano CUES U6000

Seatpost

MERIDA EXPERT TR II
Diameter: 34.9 mm
Setback: 0 mm
Travel: 150 mm XSHORT/SHORT, 170 mm MID, 200 mm LONG/XLONG

Seat Clamp:

MERIDA EXPERT

Saddle:

MERIDA COMP SL
V-mount

Chain:

Shimano LG500

Crank:

MERIDA Expert TR
32 teeth
170 mm on all sizes

Freewheel:

Shimano CUES LG400
11-48 teeth
10 speed

Hubs:

Shimano TC500-B / Shimano TC500-HM-B
110x15 mm width front hub
32 spoke holes
Centerlock
148x12 mm width rear hub
32 spoke holes
Centerlock

Rims:

MERIDA COMP CC II
25 mm inner width
material: aluminium
tubeless ready

Tyres:

 Maxxis Rekon
29x2.4"
wire

Axels

AXLES MERIDA COMP TR
including removeable lever, 6/4 mm allen key

Weight:

 15.7 kg
weighed at frame size M

Max Weight:

Total weight of bike, rider and luggage
