Merida One Twenty 600 Aluminium Dual Suspension Mountain Bike

Brand	Frame Size (CM)	Rider Height (CM)
MERIDA	XS	149-158
MERIDA	S	159-167
MERIDA	M	168-175
MERIDA	L	176-184
MERIDA	XL	185-190

Brand

Frame Size (CM)

Rider Height (CM)

MERIDA

149-158

MERIDA

159-167

MERIDA

168-175

MERIDA

176-184

MERIDA

185-190

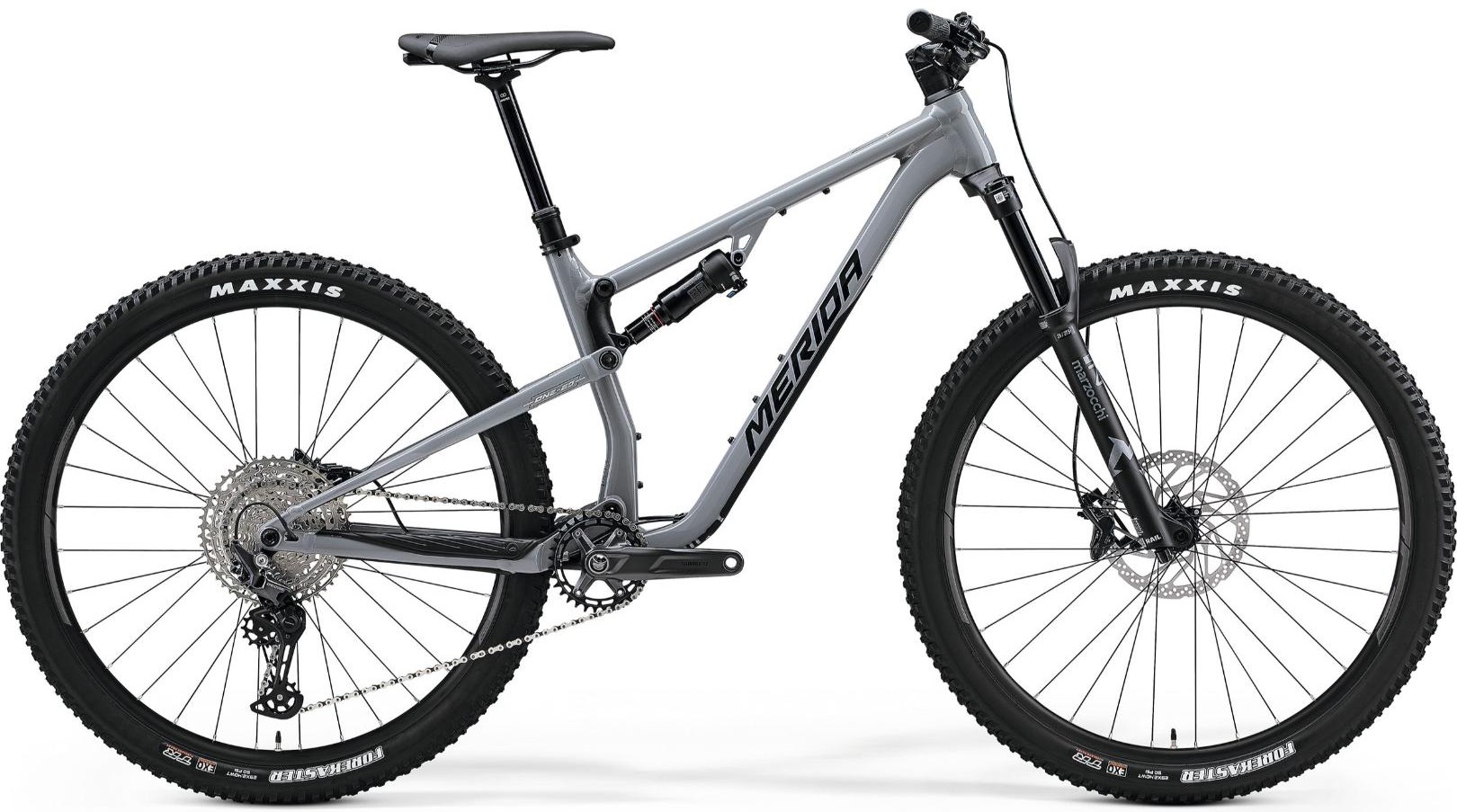

Merida One Twenty 600 a modern trail riding machine ready for a challenge. Shoot up tough descents and destroy single tracks thanks to the progressive frame geometry and the reliable Marzocchi Z2 Air 130mm fork and Rockshox Deluxe rear shock. Take on any trail with the Merida One Twenty 600 and always seek your next challenge.

Key Features:

- ONE-TWENTY LITE V Alloy Frame
- Marzocchi Z2 Air130 mm Fork
- Rock Shox Deluxe Select+
- Shimano Deore Groupset Components
- MERIDA COMP TR Alloy Rims
- Maxxis Forekaster TR 29x2.4" Tyres

Frame:

ONE-TWENTY LITE V
130 mm suspension travel
material: aluminium
29x2.5" max. wheelsize
148x12 mm axle standard
BSA bottom bracket standard

Fork:

Marzocchi Z2
Air
130 mm suspension travel
Tapered
44 mm fork offset
platform
29x2.6" max. wheelsize

Shock

Rock Shox Deluxe Select+
lockout

Brakes:

Shimano Deore M6120 / Shimano Deore M6100
4 piston
2 piston

Rotors:

Shimano RT30
203 mm
180 mm

Headset:

Acros ICR MERIDA EXTERNAL neck
Upper and lower IPS sealing

Handlebar:

MERIDA EXPERT TR II
material: aluminium
780 mm width
18 mm rise

Stem:

MERIDA EXPERT eTRII
material: aluminium
35 mm diameter
0° stem angle
40 mm

Rear Derailleur

Shimano Deore M6100
SGS

Seatpost:

MERIDA EXPERT TR II
Diameter: 34.9 mm
Setback: 0 mm
Travel: 150 mm XSHORT/SHORT, 170 mm MID, 200 mm LONG/XLONG

Seat Clamp

MERIDA EXPERT

Saddle:

MERIDA COMP SL
V-mount

Chain:

KMC X12

Crank:

Shimano Deore MT512
32 teeth
170 mm on all sizes

Freewheel

Shimano Deore M6100
10-51 teeth
12 speed

Bottom Bracket:

Shimano BB-MT-501
24 mm

Hubs:

Shimano TC500-B / Shimano TC500-MS-B
110x15 mm width front hub
32 spoke holes
Centerlock
148x12 mm width rear hub
32 spoke holes
Centerlock

Rims:

MERIDA COMP TR
29 mm inner width
material: aluminium
Tubeless ready (tubeless tape and valves not included)

Tyres:

Maxxis Forekaster
29x2.4"
fold
TR Dual

Axles:

MERIDA EXPERT TR
including removeable lever, 6/4 mm allen key

Weight:

15.21 kg
weighed at frame size M

Max Weight:

135 kg
Total weight of bike, rider and luggage
