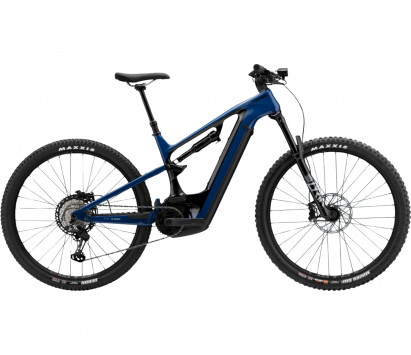

2023 Cannondale Moterra Neo 1 Carbon Dual Suspension Mountain Bike

The 2023 Cannondale Moterra Neo 1 Carbon Dual Suspension Mountain Bike is built for riders looking to push their limits on any trail. Whether tackling challenging climbs or racing downhill, this e-mountain bike delivers power, control, and confidence in every ride.

The bikes heart lies in the Bosch Performance Line CX motor, delivering an incredible 85Nm of torque. It boosts your pedalling power by up to 340%, providing smooth, natural assistance for steep climbs and long-distance rides. Paired with Boschs 750Wh battery, the Moterra Neo 1 allows you to go further than ever before. The high-capacity battery eliminates range anxiety, making it perfect for extended adventures. You can charge it directly on the bike or remove it easily for off-bike charging.

With Proportional Response size-specific suspension design, each frame size is tailored for precise handling, traction, and efficient pedaling. The carbon fibre frame is lightweight yet durable, with a lifetime warranty offering peace of mind. Perfect for riders who crave a bike that excels on climbs and descents, the Moterra Neo 1 makes every ride electrifying.


Key Features:

- Bosch Performance Line CX motor with 85Nm torque
- Bosch 750Wh battery with on- and off-bike charging capability
- Proportional Response size-specific suspension design
- Carbon fibre frame with lifetime warranty
- RockShox Lyrik Select+ fork with 150mm travel
- Shimano XT 12-speed drivetrain
- Integrated 1000-lumen Lezyne headlight
- Clean internal cable management
- Sealed battery cover and burly skid plate for protection
- 29 Maxxis Minion DHF and Rekon tubeless-ready tyres

Benefits:

- Powerful motor boosts pedalling effort by up to 340%, making steep climbs easier and more enjoyable
- High-capacity battery allows for extended rides without worrying about running out of power
- Tailored suspension and geometry for each frame size, ensuring optimal control, comfort, and traction for all riders
- Lightweight yet durable frame for better handling and long-term reliability
- Smooth, efficient shifting with the Shimano drivetrain for better control on varied terrain
- Bright front light extends riding hours, even in low-light conditions
- Sleek design with hidden cables provides a clean look and reduces maintenance
- Strong skid plate and protective cover safeguard key components, making the bike durable for rough conditions

Frame

Moterra Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, 1.5  1.8 tapered headtube, 18mm two-bolt kickstand mount

Fork

RockShox Lyrik Select+, 150mm, DebonAir, 15x110mm thru-axle, tapered steered, 44mm offset

Headset

Acros integrated sealed bearing, tapered

Rear Shock

RockShox Deluxe Select+, DebonAir, 2-Pos mode adjust, adjustable rebound

Drive Unit

Bosch Performance Line CX 250W

Battery

Bosch PowerTube, 750Wh

Charger

Bosch 4A

Display

Bosch Kiox 300 w/ LED remote
Certifications
UL2849

Rear Derailleur

Shimano XT

Shifters

Shimano XT, 12-speed

Chain

Shimano XT, 12-speed

Crank

FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T

Rear Cogs

Shimano XT, 10-51, 12-speed

Brakes

Shimano XT 8120 4-piston hydraulic disc, 203/203mm RT76 rotors

Brake Levers

Shimano XT hydraulic disc

Rims

WTB KOM Trail i30 TCS, 32h, tubeless ready

Spokes

DT Swiss Champion
Tire Size
2.6

Hubs

(F) Formula 15x110mm thru-axle / (R) DT Swiss, 12x148mm thru-axle

Tyres

(F) Maxxis Minion DHF, 29x2.6", EXO, tubeless ready / (R) Maxxis Rekon, 29x2.6" (27.5x2.6" - size Small), EXO, tubeless ready

Handlebar

HollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8° sweep, 5° rise, 780mm

Stem

Cannondale 2, 6061 Alloy, 35mm, 0°

Grips

Fabric FunGuy

Saddle

Fabric Scoop Shallow Elite, cro-mo rails

Seatpost

Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S),
