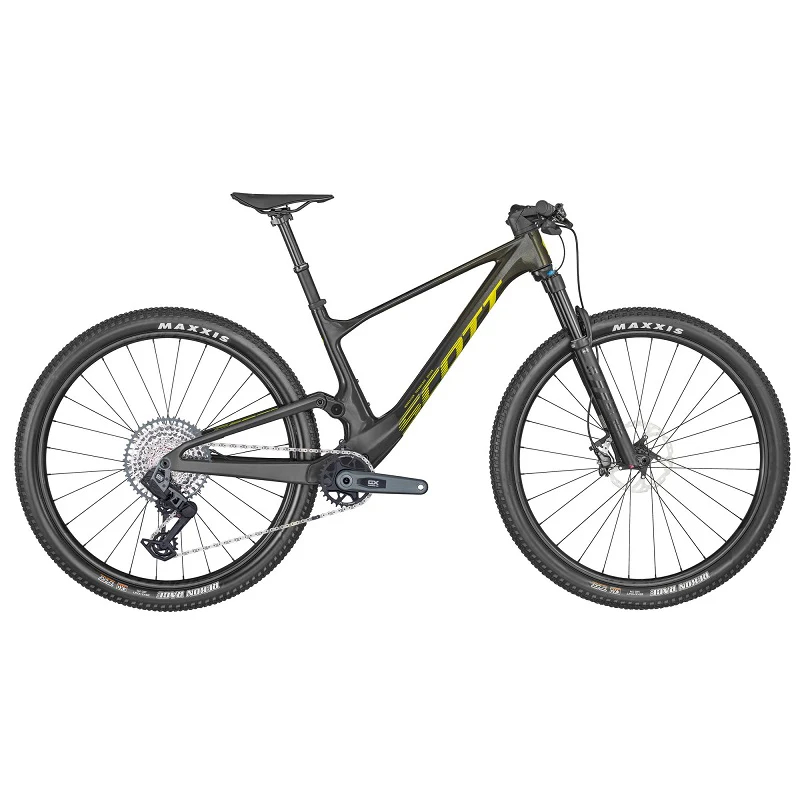

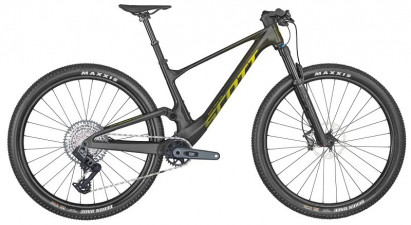

2023 Scott Spark RC Team Issue TR AXS Carbon Dual Suspension Mountain Bike

Brand	Frame Size (CM)	Rider Height (CM)
SCOTT	2XL	194-198
SCOTT	XL	186-193
SCOTT	L	179-185
SCOTT	M	169-178
SCOTT	S	159-168
SCOTT	XS	148-158

Brand

Frame Size (CM)

Rider Height (CM)

SCOTT

2XL

194-198

SCOTT

186-193

SCOTT

179-185

SCOTT

169-178

SCOTT

159-168

SCOTT

148-158

The 2023 Scott Spark RC Team Issue TR AXS redefines dual-suspension performance for cross-country racers and trail riders chasing speed and precision. Its lightweight carbon frame, 120mm of travel, and advanced suspension design deliver exceptional handling and power transfer on demanding courses and technical tracks.

The SRAM GX Eagle AXS wireless drivetrain provides flawless shifting, keeping the ride smooth and efficient under pressure. With the ability to adjust the head angle by .6 degrees without cutting cables or bleeding brakes, it offers easy customisation to suit varying conditions and preferences.

An integrated shock system lowers the centre of gravity, improving stability and control while keeping the suspension fully protected from mud, water, and debris. Proven single-pivot suspension kinematics reduce unnecessary weight and ensure responsive performance for punchy climbs and fast descents. Ideal for riders seeking innovation, speed, and reliability in every ride.

Key Features:

- Spark RC Carbon HMF Frame
- FOX 34 SC Float Perf. 120mm Fork
- FOX Nude 5 EVOL, 120mm, TwinLoc
- SRAM GX Eagle AXS Transmission Groupset Components
- Syncros Silverton 2.0 TR Wheels
- Maxxis Rekon Race Foldable Tires

Frame

Spark RC Carbon HMF
Integrated Suspension Technology
Flex Pivot / Adjustable head angle
Syncros Cable Integration System
BB92 / UDH Interface / 12x148mm with 55mm Chainline

Fork

FOX 34 SC Float Performance Air Grip
3-Modes / Kabolt 15x110mm axle / 44mm offset / tapered steerer
Reb. Adj. / Lockout / 120mm travel

Rear Shock

FOX NUDE 5 EVOL Trunnion
SCOTT custom w. travel / geo adj.
3 modes: Lockout-Traction Control-Descend
DPS / Reb. Adj. / Travel 120-80-Lockout / T165X45mm

Remote System

SCOTT TwinLoc 2 Technology
3 Suspension modes

Rear Derailleur

SRAM GX Eagle AXS Transmission 12 Speed
Wireless Electronic Shift System

Shifters

SRAM GX Eagle AXS Rocker Controller

Crankset

SRAM GX Eagle Transmission
DUB / 55mm CL / 32T

BB-Set

SRAM DUB PF 92 MTB Wide / shell 41x92mm

Chain

SRAM CN GX Eagle Transmission

Cassette

SRAM GX Eagle XS 1275 Transmission 10-52

Brakes

Shimano XT M8100 Disc

Rotor

Shimano SM-RT76 / 6 Bolt / 180/F and 160/R

Handlebar

Syncros Fraser iC SL XC Carbon
-12° rise / back sweep 8° / 740mm
Syncros Performance XC lock-on grips

Seatpost

FOX Transfer SL Performance Dropper Post
31.6mm / S size 75mm / M
L & XL size 100mm

Seat

Syncros Belcarra Regular 1.5
Titanium rails

Headset

Syncros - Acros Angle adjust & Cable Routing HS System
+-0.6° head angle adjustment
ZS56/28.6  ZS56/40 MTB

Wheelset

Syncros Silverton 2.0-30 6 Bolt
F: 15x110mm
R: 12x148mm
30mm Tubeless ready rim / 28H / XD Driver
Syncros Axle w/Removable Lever
with 6mm Allen
T30 and T25 Tools

Front Tire

Maxxis Rekon Race / 29x2.4" / 120TPI Foldable Bead
Tubeless Ready / EXO

Rear Tire

Maxxis Rekon Race / 29x2.4" / 120TPI Foldable Bead
Tubeless Ready / EXO

Approx weight in KG

11.6 (Tubeless setup)

Max. System Weight

128kg

The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
