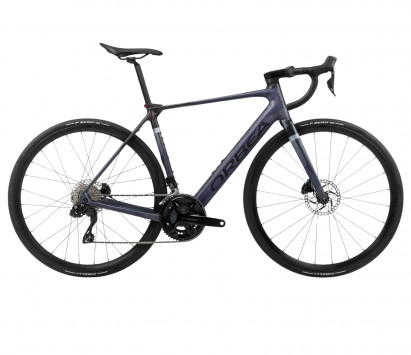

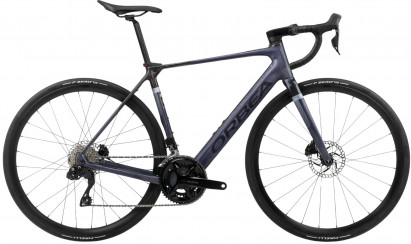

Best Seller 2024 Orbea Gain M30I Carbon Road E-Bike

The 2024 Orbea Gain M30I Carbon Road E-Bike features an OMR carbon frame that marries high-strength fibers with a refined molding process for exceptional stiffness and lightweight performance. Designed for long-distance comfort, its relaxed geometry ensures a smooth ride without sacrificing precision control. Cables are routed invisibly through the frame, minimizing friction and eliminating noise, while the integrated seatpost clamp enhances both aesthetics and aerodynamics. The Mahle X20 rear hub motor delivers seamless assistance without compromising pedaling feel, supported by a sleek iX350 battery that integrates neatly into the frame.

Key Features:

- Orbea Gain Carbon OMR Frame
- Gain OMR Carbon Fork
- Mahle Motor Hub X20, ALC
- Mahle iX350 36V 353Wh Battery
- Shimano 105 Di2 Groupset Components
- Alloy, Tubeless, 700c, 21c Rims
- Pirelli P ZERO Race Smart EVO TR 30c Tyres

Frame

Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with STVZO light, ICR cable routing, Thru Axle 12x142mm rear, thread M12x2 P1, Flat Mount disc, 700x35 max tyre, BB386 EVO, Mahle X20 AMC plug.

Fork

Gain OMR carbon fork, 700x35 maximum tyre, Flat Mount disc, Thru Axle 12x100mm, thread M12x2 P1

Headset

FSA 1-1/2" Integrated Aluminium Cup

Battery

Mahle iX350 36V 353Wh

Motor

Mahle motor hub X20, ALC

Display

Mahle Pulsar One monochrome ANT+ LEV

CHARGER
Mahle Active Charger up to 4A

Remote

Mahle ONE Head Unit (BT/ANT+)

Remote2

Mahle Handlebar Dual eShifter

Crankset
Shimano 105 R7100 34x50t

Shifters

Shimano Di2 R7170

Cassette

Shimano 105 R7100 11-34t 12-Speed

Rear derailleur

Shimano 105 Di2 R7150

Front derailleur

Shimano 105 Di2 R7150

Chain

Shimano M7100

Handlebar

OC Road Performance RP21 Alu SL, Reach 80, Drop 125

Stem

OC Road Performance RP10, -8º

Brakes

Shimano R7170 Hydraulic Disc

Wheels

Alloy, Tubeless, 700c, 21c

Tyres

Pirelli P ZERO Race SmartEVO TLR 700x30c

Front Wheel Axle

Orbea Thru Axle 12x100mm M12x2 P1 Lite

Rear Wheel Axle

Orbea Thru Axle 12x142mm M12x2 P1 Lite

Seatpost

SP 0.2 Carbon, 27.2mm, Setback 20

Saddle

Fizik Aliante R5
