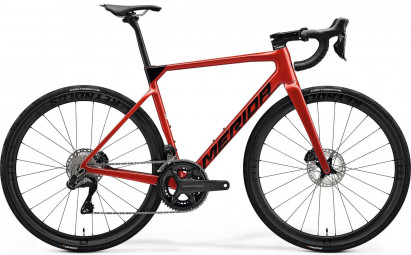

Merida Scultura 8000 Carbon Road Bike

Brand	Frame Size (CM)	Rider Height (CM)
MERIDA	2XL	191-200
MERIDA	XL	181-190
MERIDA	L	176-180
MERIDA	M	171-175
MERIDA	S	165-170
MERIDA	XS	155-165

Brand

Frame Size (CM)

Rider Height (CM)

MERIDA

2XL

191-200

MERIDA

181-190

MERIDA

176-180

MERIDA

171-175

MERIDA

165-170

MERIDA

155-165

Product ID: 1018205

Unleash your potential with the Merida Scultura 8000 Carbon Road Bike, a stunning combination of lightweight design and comfort-focused engineering. Built with a CF3 frame that emphasizes agility and compliance, this bike is perfect for climbers and sprinters alike. Drawing on the race-proven geometry of the REACTO, the Scultura 8000 offers exceptional handling and aerodynamic efficiency, allowing riders to maintain speed with ease. With its focus on rider comfort and lightweight construction, the Scultura 8000 is ready to tackle any challenge on the road, making every ride a thrilling adventure.

 Key Features:

- Scultura CF3 Carbon Frame
- Scultura Carbon Fork
- Shimano Ultegra Groupset Components
- Continental Grand Prix Tyres

 Frame:
Scultura CF3 V
material: carbon
700x30C max. wheelsize
100x12/ 142x12mm axle standard
Pressfit 86,5
 Fork:
Scultura CF3 Disc
material: carbon
700x30C max. wheelsize
 Brakes:
Shimano Ultegra
Hydraulic Disc
 Rotors:
Shimano MT800
160mm
 Brake Lever:
Shimano Ultegra
 Headset:
FSA ACR
 Handlebar:
Merida Expert SL
Material: Aluminium
 Handlebar Stem:
FSA SMR ACR
material: aluminium
-6� stem angle
 Grip:
Merida Road Expert
 Front Derailleur:
Shimano Ultegra Di2
 Rear Derailleur:
Shimano Ultegra Di2
 Shifters:
Shimano Ultegra Disc Di2
 Seat Post:
Merida Team SL
27.2mm diameter
15mm setback
Carbon
S-Flex
 Seat Clamp:
Merida Expert
 Saddle:
Prologo Scratch M5
 Chain:
Shimano CN-M6100-12
 Crank:
Shimano Ultegra
52-36t
 Freewheel:
Shimano CS-R8100
11-30T
12 Speed
 Bottom Bracket:
Reynolds AR 41 DB
100x12mm width front hub
142x12mm width rear hub
21mm inner width
41mm height
Centerlock
material: carbon
Tubeless ready (tubeless tape and valves included)
 Tyres:
Continental Grand Prix 5000S
700 x 28C
Fold
