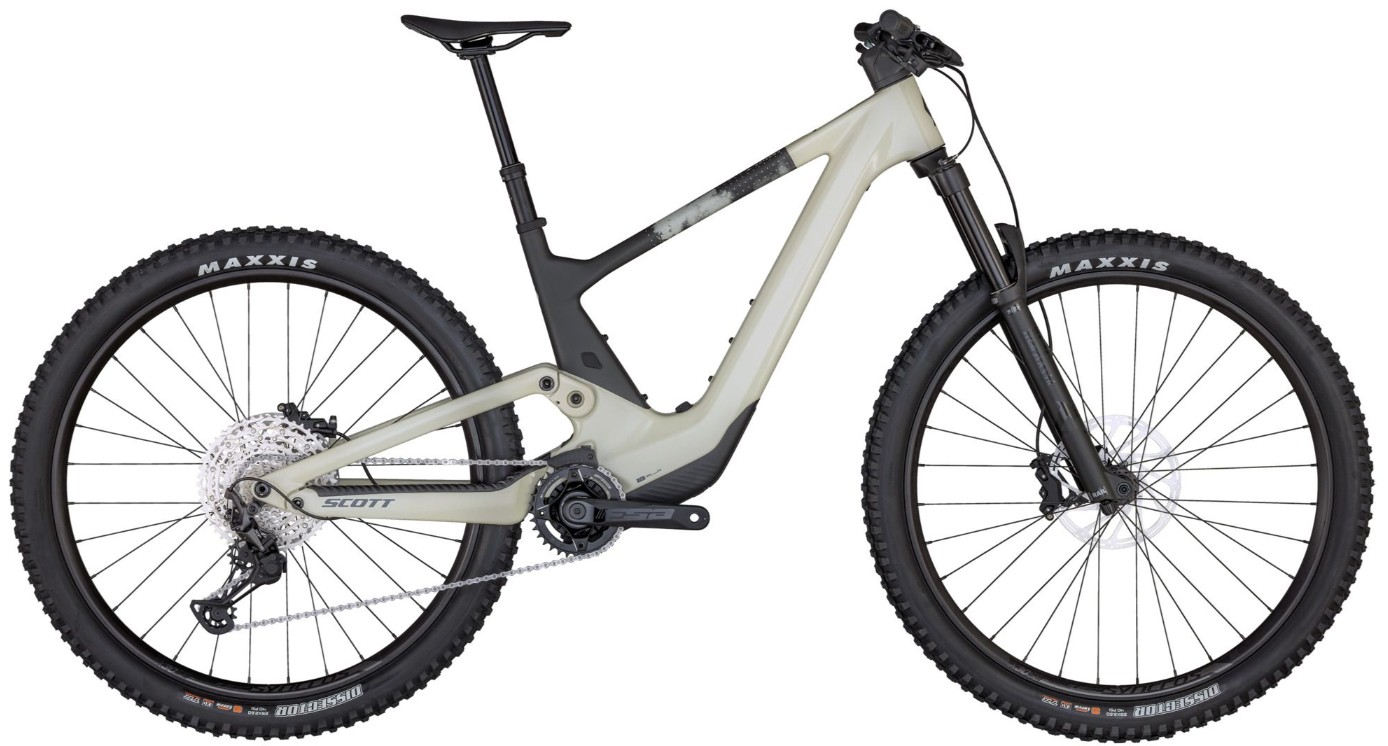

Scott Voltage E-Ride 920 Carbon Dual Suspension Mountain Bike 2024

Product ID: 1018596

Take your rides to the next level with the Scott Voltage E-Ride 920, a sleek and lightweight e-MTB built for those who thrive on pushing boundaries. Powered by advanced TQ technology, the Voltage delivers seamless electric assistance with a natural pedalling feel, making it ideal for riders seeking agility, performance, and extended adventures.

The Voltage E-Ride pairs its carbon HMF frame with a Marzocchi Z2 Air 150mm fork and FOX Float Custom shock, ensuring confidence and control on climbs and descents alike. The integrated suspension platform provides effortless access to adjust rebound, air pressure, and other settings, allowing you to fine-tune your bike in seconds. An external sag indicator simplifies travel adjustments, so you'll always optimise your setup for the trail ahead.

For long days in the saddle, the TQ HPR50 motor provides 50Nm of torque in an ultra-compact, quiet design. Coupled with a 360Wh internal battery ensures reliable power support until the final turn. TQ's innovative battery management maintains peak performance even at low charge levels, so every ride can go the distance.

Built for riders who demand performance without compromise, the Voltage E-Ride combines rugged capability with the refinement needed to tackle steep climbs, technical descents, and everything in between. Whether you're chasing thrills or exploring new paths, this e-MTB is your ultimate partner.

Key Features:

- Frame: Voltage E-Ride Carbon HMF
- Fork: Marzocchi Z2 Air, 150mm travel
- Shock: FOX Float Custom, 150mm, TwinLoc
- Groupset: Shimano XT-Deore 12-speed
- Brakes: SRAM DB8 4-piston disc brakes
- Motor: TQ HPR50 with 50Nm torque
- Battery: 360Wh internal
- Tyres: Maxxis for superior grip and durability

Benefits:

- Natural Pedalling Feel
The TQ HPR50 motor delivers smooth, quiet, and seamless power, enhancing climbs and descents.
- Effortless Suspension Adjustments
A simple push-button system makes fine-tuning rebound, air pressure, and sag quick and easy.
- Lightweight and Agile
The carbon HMF frame and compact motor keep the bike nimble and responsive for technical trails.
- Reliable Control
SRAM DB8 4-piston disc brakes ensure powerful, consistent stopping in all conditions.

Frame:
Carbon HMF
Integrated Suspension Technology
Virtual 4 Link kinematic / Adjustable head angle
Syncros Cable Integration System
TQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline
Range Extender Ready
Travel:
Front: 150mm / Rear: 155mm
Fork:
Marzocchi Z2 Air Rail
3 modes / 15x110mm QR axle / tapered steerer
44mm offset / Reb. Adj. / Lockout / 150mm travel
Rear Shock:
FOX Float Custom EVOL Performance Trunnion
3 modes / Lockout-Trail-Descend
DPS / Reb. Adj.
Travel 155mm / T185X55mm
Remote System:
SCOTT TwinLoc 2 Technology
Suspension & Dropper Remote
3 Suspension modes
Drive Unit:
 TQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh / US: 20mph
Battery:
TQ Internal 360Wh
Display:
TQ HPR
Bluetooth / ANT+ / Dedicated Smartphone app
Charger:
TQ 100-240V-4A
Rear Derailleur:
Shimano XT RD-M8100 SGS
Shadow Plus / 12 Speed
Shifters:
Shimano Deore SL-M6100-IR / Rapidfire Plus
I-spec EV clamp
Crankset:
FSA Alloy crankset / 175mm / 34T
Chainguide:
 e*thirteen / e*spec Slider
Chainring:
Scott custom spider / FSA 12Speed 34T chainring
Chain:
 Shimano CN-M6100
Cassette:
 Shimano CS-M6100 / 10-51 T
Brakes:
 SRAM DB8 4 Piston Disc
Rotor:
 SRAM Centerline CL Rotors F&R 200mm
Handlebar:
 Syncros Hixon 2.0 Alloy 6061 D.B.
12mm Rise / back sweep 8� / 780mm
Syncros Endurance lock-on grips
Stem:
 Syncros AM 2.0
Syncros Cable Integration System
4� rise / 6061 Alloy / 31.8mm / 1 1/8"
Seatpost:
Syncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mm
S size 140mm / M size 180mm / L & XL size 210mm
Seat: Syncros Tofino 2.0 Regular
Headset:
 Syncros - Acros Angle adjust & Cable Routing HS System
Stainless / +-0.6� head angle adjustment
ZS56/28.6 � ZS56/40 MTB
Hub (Front):
Formula CL-811 / 15x110mm
Hub (Rear):
 Formula CL-148M / 12x148mm
Spokes:
Stainless Black 15G / 1.8mm
Rims: Syncros X-30S / 32H / 30mm / Sleeve Joint
Tubeless ready
Front Tire:
Maxxis Dissector / 29x2.6" / 60TPI Wire Bead
EXO
Dual
Rear Tire:
Maxxis Dissector / 29x2.6" / 60TPI Wire Bead
EXO
Dual
Approx weight in KG:
19.3 (with tubes)
Approx weight in LBS:
 42.55 (with tubes)
Max. System Weight:
 128kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
