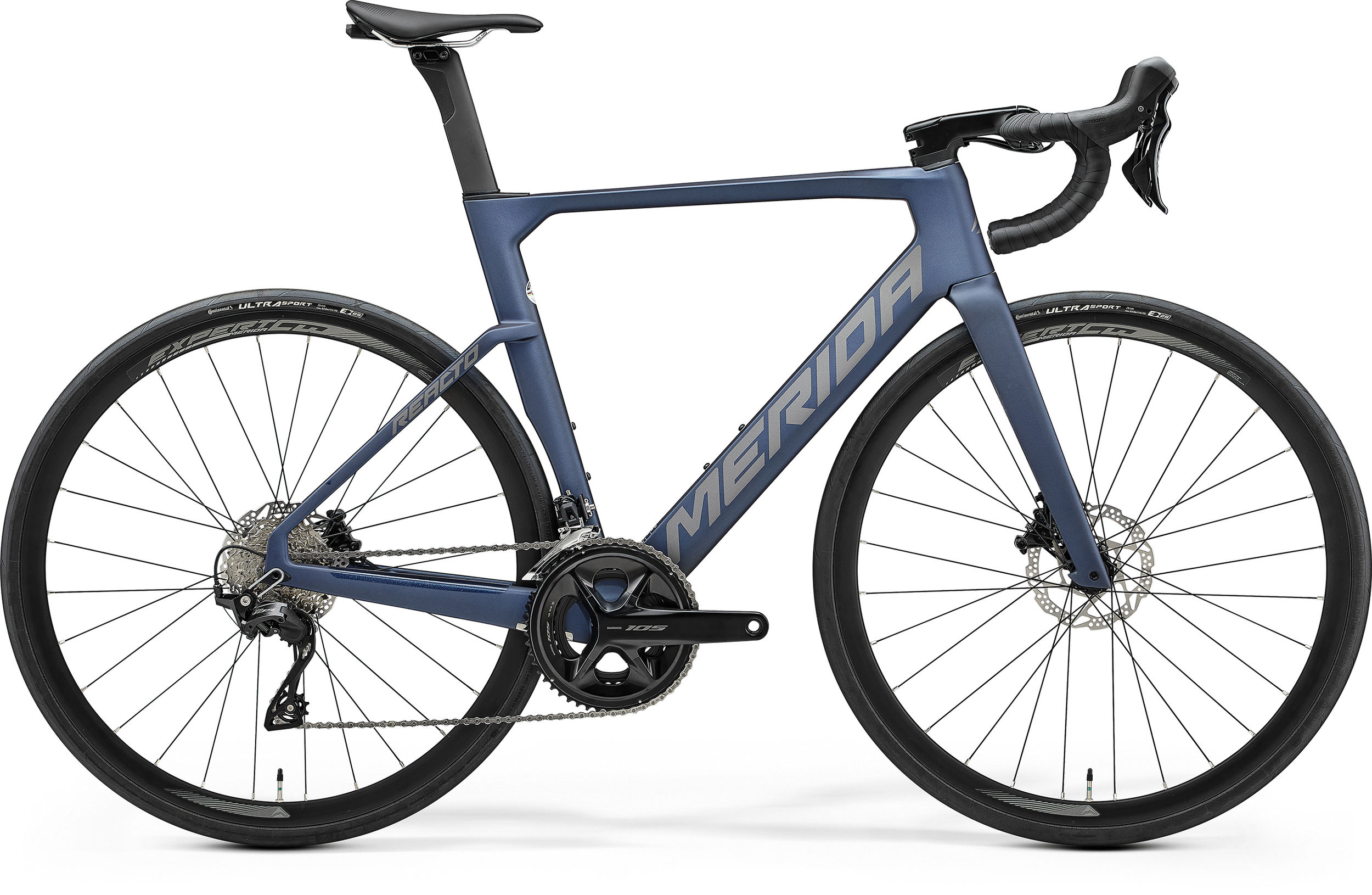

Merida Reacto 4000 Carbon Road Bike 2025

Brand	Frame Size (CM)	Rider Height (CM)
MERIDA	2XL	191-200
MERIDA	XL	181-190
MERIDA	L	176-180
MERIDA	M	171-175
MERIDA	S	165-170
MERIDA	XS	155-165

Brand

Frame Size (CM)

Rider Height (CM)

MERIDA

2XL

191-200

MERIDA

181-190

MERIDA

176-180

MERIDA

171-175

MERIDA

165-170

MERIDA

155-165

Speed meets precision with the 2025 Merida Reacto 4000 Carbon Road Bike, an ideal choice for riders pushing their limits on race day or taking on challenging club rides. Built around the lightweight CF3 carbon aero frame, it slices through the air effortlessly while maintaining stability and control. The carefully refined geometry ensures sharp handling and rapid acceleration, making it a strong contender for sprinters and criterium specialists alike.

Fitted with the latest Shimano 105 12-speed mechanical groupset, every shift is smooth, responsive, and reliable, ensuring confidence in the toughest racing conditions. The S-FLEX carbon seat post helps absorb road vibrations, offering a smoother ride over cobbled streets and uneven road surfaces. Generous tyre clearance, accommodating up to 30mm tyres, allows for enhanced grip and comfort without compromising speed.

For those stepping into the world of competitive racing or seeking an aerodynamic edge on fast-paced group rides, the Reacto 4000 delivers in every aspect. Its aerodynamic efficiency, rapid responsiveness, and class-leading comfort make it a top choice for riders who demand performance without compromise.

Key Features:

- REACTO CF3 IV, Carbon Frame
- REACTO CF3 IV DISC, Carbon Fork
- Shimano 105 Groupset Components
- Merida Expert Alloy Rims
- Continental Ultra Sport III, 700x28C Tyres

Benefits

- Aerodynamic Efficiency: The CF3 carbon aero frame reduces drag for faster speeds with less effort.
- Sharp Handling: Refined geometry ensures precise handling for quick acceleration and control.
- Smooth Shifting: The Shimano 105 12-speed groupset offers reliable, seamless gear changes in tough conditions.
- Enhanced Comfort: The S-FLEX carbon seat post absorbs road vibrations, providing a smoother ride over rough surfaces.
- Versatile Tyre Clearance: Accommodates up to 30mm tyres for improved grip and comfort without sacrificing speed.


Frame

REACTO CF3 IV, Carbon, 700x30C Max. Wheelsize, 100x12/142x12mm Axle Standard, BB86.5 Bottom Bracket Standard

Frame Sizes

XXS, XS, S, M, L, XL

Fork

REACTO CF3 IV DISC, Carbon, 700x30C Max. Wheelsize

Rim

MERIDA EXPERT CW, 19mm Inner Width, 30mm Height, Aluminium, Tubeless Ready (Tubeless Tape and Valves Not Included)

Hubs

Front: Shimano HB-TC500, 100x12mm Width, 28 Spoke Holes, Centerlock
Rear: Shimano HB-TC500-HL, 12-142mm Width, 28 Spoke Holes, Centerlock

Front Tyre

Continental Ultra Sport III, 700x28C, Fold

Rear Tyre

Continental Ultra Sport III, 700x28C, Fold

Hubs

MERIDA EXPERT SL, Including Removable Lever, 6/4mm Allen Key

Crank

Shimano 105, 52-36 Teeth
165mm (XXS), 170mm (XS), 172.5mm (S/M/L), 175mm (XL)

Bottom Bracket

Shimano SM-BB72-41B, Pressfit 86.5

Cassette

Shimano 105 R7101, 11-34 Teeth, 12-Speed

Chain

Shimano M6100-12

Shifters

Shimano 105 Disc

Front Derailleur

Shimano 105

Rear Derailleur

Shimano 105 GS

Brake Levers

Shimano 105

Brakes

Shimano 105, Hydraulic Disc

Rotors

Shimano RT54, 160mm

Headset

MERIDA TEAM SL, VP-MRBHB (OP203 Neck)

Stem

MERIDA EXPERT SL 2PII, Aluminium, -9° Stem Angle
90mm (XXS/XS), 100mm (S), 110mm (M/L), 120mm (XL)

Handlebar

MERIDA EXPERT CW, Aluminium
380mm (XXS-XS-S), 400mm (M-L-XL)

Grip

MERIDA ROAD Expert

Seat Post

MERIDA TEAM CW, Aero Shape, 15mm Setback, Carbon

Seat Clamp

MERIDA REACTO Aero

Saddle

MERIDA EXPERT SL, 6% Recycled and 23% Nature Material, V-Mount, Incl. MERIDA Minitool
